Description

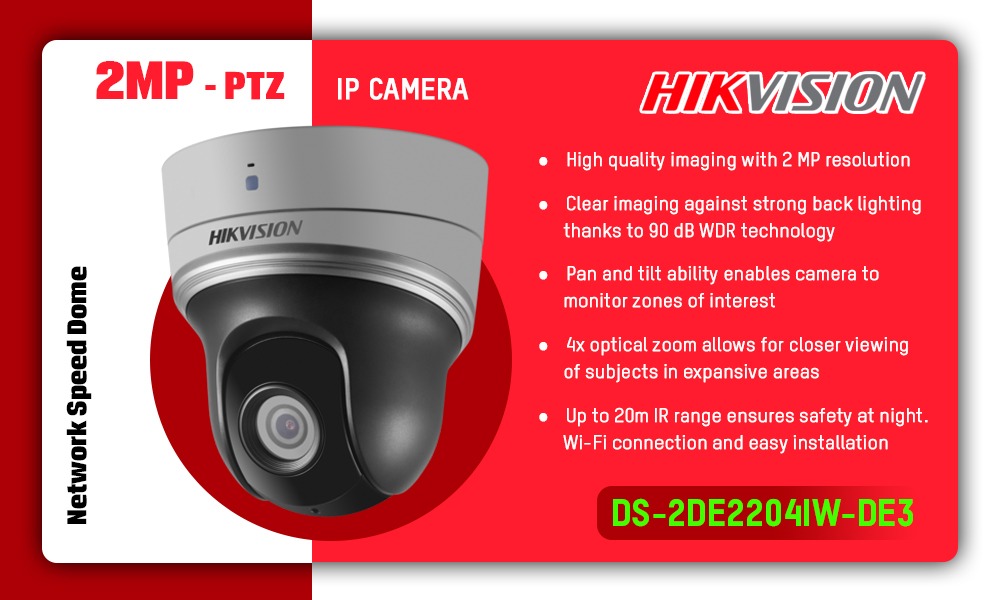

Datasheet: DS-2DE2204IW-DE3
User Manual: DS-2DE2204IW-DE3
Lens
- FOV
- Horizontal field of view: 94.5° to 38° (wide-tele)
- Vertical field of view: 52° to 21.5° (wide-tele)
- Diagonal field of view: 110° to 44° (wide-tele)
- Zoom Speed: Approx. 2 s (optical lens, wide-tele)
- Working Distance: 10 mm to 1500 mm (wide-tele)
- Aperture Range: F1.8 to F2.5
- Focal Length: 2.8 mm to 12 mm, 4× optical zoom
- Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
- Sub-Stream
- 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
- 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
- Max. Resolution: 1920 × 1080
- Main Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Third Stream
- 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
- 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Network
- Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 128 GB; NAS (NPS, SMB/ CIPS), ANR
- Protocols: IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
- Simultaneous Live View: Up to 20 channels
- User/Host: Up to 32 users. ,3 levels: Administrator, Operator and User
- Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web Browser: IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+
- Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IP address filtering
- Alarm Linkage: Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
- Wi-Fi: Support
Interface
- Alarm Output: 1-ch alarm output
- Alarm Input: 1-ch alarm input
- Audio Input: 1-ch audio input
- Audio Output: 1-ch audio output
- Network Interface: 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3af, class3)
Compression Standard
- H.264+: Support
- H.265+: Support
- H.264 Type: Baseline Profile/Main Profile/High Profile
- Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264/MJPEG
- H.265 Type: Main Profile
- Video Bitrate: 32 Kbps to 16384 Kbps
- SVC: Support
Camera Module
- AGC: Auto/Manual
- Image Sensor: 1/2.8″ progressive scan CMOS
- Min. Illumination: Color: 0.05 Lux @(F2.0, AGC ON),B/W: 0.005 Lux @(F2.0, AGC ON),0 Lux with IR
- White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
- Shutter Time: 1/1 s to 1/10,000 s
- Day & Night: IR Cut Filter
- Digital Zoom: 4×
- Privacy Mask: 8 programmable privacy masks
- Focus Mode: Auto/Semi-automatic/Manual
- Digital WDR: Support
Supplement Light
- IR Distance: Up to 20 m
- IR Intensity: Automatically adjusted, depending on the zoom ratio
PTZ
- Movement Range (Pan): 350°
- Pan Speed: Configurable, from 0.1°/s to 60°/s,Preset Speed: 60°/s
- Movement Range (Tilt): From 0° to 90°
- Tilt Speed: Configurable, from 0.1°/s to 50°/s,Preset Speed: 50°/s
- Proportional Zoom: Support
- Presets: 300
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
- Power-Off Memory: Support
- Park Action: Preset/Patrol Scan
- PTZ Status Display: Support
- Preset Freezing: Support
- Scheduled Task: Preset/Patrol /Dome Reboot/Dome Adjust/Aux Output
Smart Features
- Basic Event Detection: Motion Detection, Video Tampering Detection
- Smart Detection: Intrusion Detection, Line Crossing Detection, Audio Exception Detection
- ROI: Main stream, sub-stream and third stream respectively support two fixed areas.
General
- Material: ADC12 PC PC+ABS SUS304 POM
- Dimensions: Φ 125 mm × 136.7 mm (Φ 4.92″ × 5.38″)
- Weight: Approx. 0.65 kg (1.43 lb)
- Protection Level: TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
- Power: DC 12V, 1.0 A, and PoE (802.3af), 36 to 57 VDC, 0.35 A, Class3
Max.: 9W, including max. 4W for IR
- Working Temperature: Working Temperature: -10°C to 50°C (14°F to 122°F)
- Working Humidity: Working Humidity: ≤ 90%
