Description

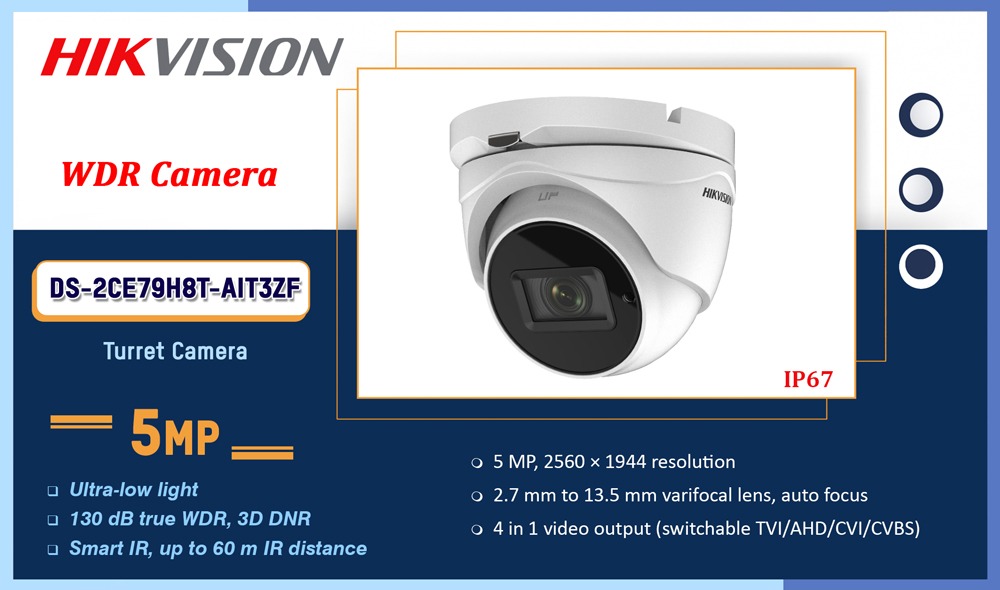

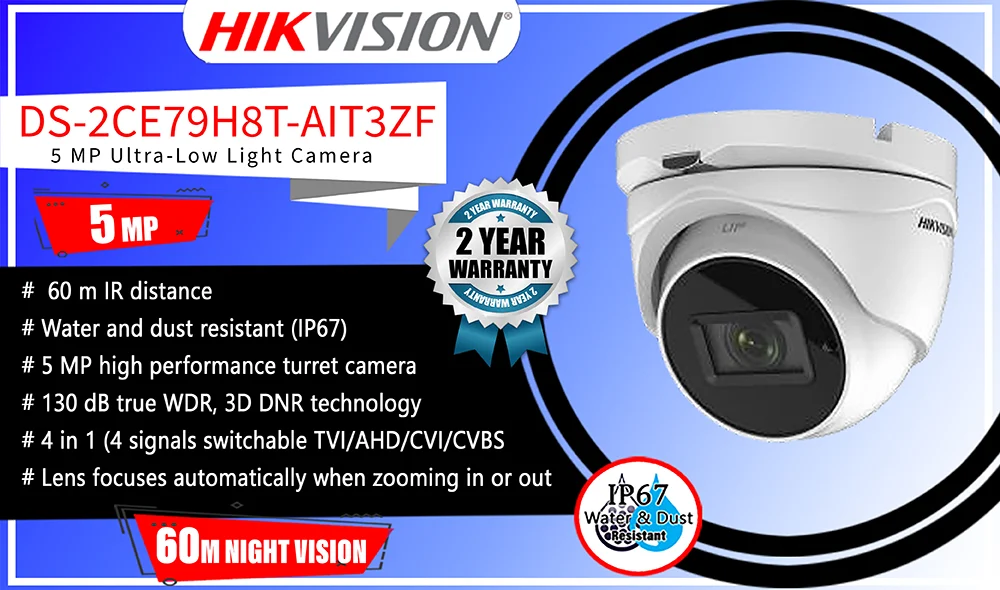

Datasheet: DS-2CE79H8T-AIT3ZF
User Manual: DS-2CE79H8T-AIT3ZF
Camera
- Image Sensor: 5 MP CMOS
- Max. Resolution: 2560 (H) × 1944 (V)
- Min. Illumination: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/12.5s to 1/50, 000 s
- NTSC: 1/15 s to 1/50, 000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.7 mm to 13.5 mm motorized varifocal lens
- Focal Length & FOV: 92.3° to 29.3°
- Lens Mount: Φ14
- Parameters Switch: STD/HIGH-SAT
- Settings: Brightness, Sharpness, Mirror, Smart IR
- Frame Rate
- TVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps
- AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps
- CVI: 4MP@25fps, 4MP@30fps
- CVBS: PAL, NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): ≥130 dB
- Image Enhancement: BLC, HLC
- White Balance: ATW/MANUAL
- AGC: Support
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Metal
- Dimension: 123.86 mm × 134.3 mm × 110.24 mm (4.88″ × 5.29″ × 4.34″)
- Weight: Approx. 630 g (1.39 lb.)
- Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 20%, 24 VAC ± 20%
- Consumption: Max. 10.5 W
- IR Range: Up to 60 m
Approval
- Protection: IP67
