Description

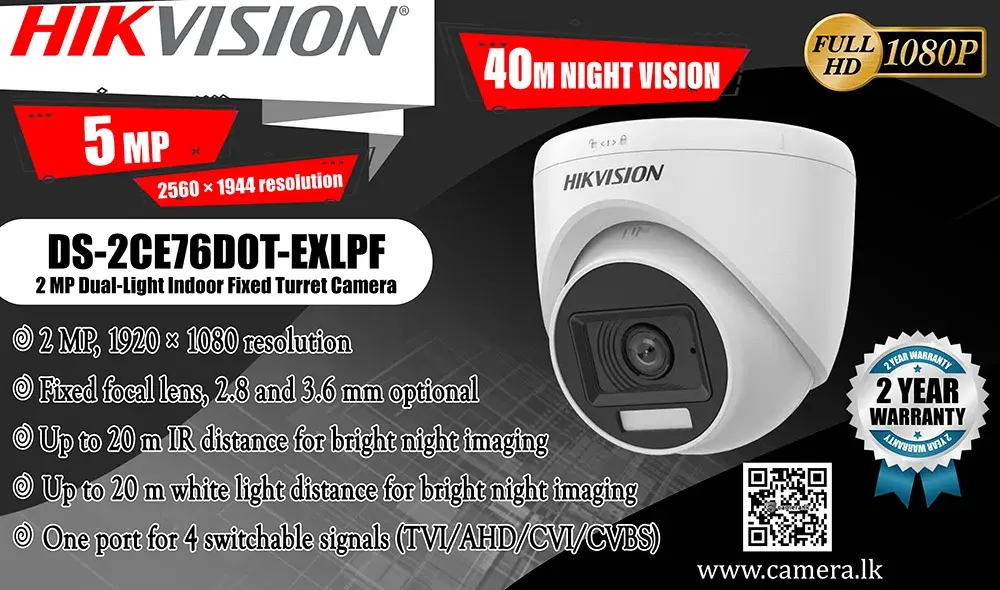

Datasheet: DS-2CE76D0T-EXLPF
User Manual: DS-2CE76D0T-EXLPF
Quick Start Guide: DS-2CE76D0T-EXLPF
Specification
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: Fixed focal lens, 2.8 and 3.6 mm optional
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°
- Lens Mount: M12
Illuminator
- Supplement Light Type: White Light;IR
- Supplement Light Range
- IR : Up to 20 m
- White Light : Up to 20 m
- Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
- Image Settings: Brightness, Sharpness, Smart IR
- Frame Rate
- TVI: 1080p @ 30 fps, 1080p @ 25 fps
- AHD: 1080p @ 30 fps, 1080p @ 25 fps
- CVI: 1080p @ 30 fps, 1080p @ 25 fps
- CVBS: PAL/NTSC
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: DWDR/BLC/HLC/Global
- White Balance: Auto/Manual
- AGC: Yes
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Plastic
- Dimension: Ø85 mm × 84.6 mm (3.35″ × 3.33″)
- Weight: Max. 150 g (0.33 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%, Max. 3.5 W
*You are recommended to use one power adapter to supply the power for one camera.
