Description

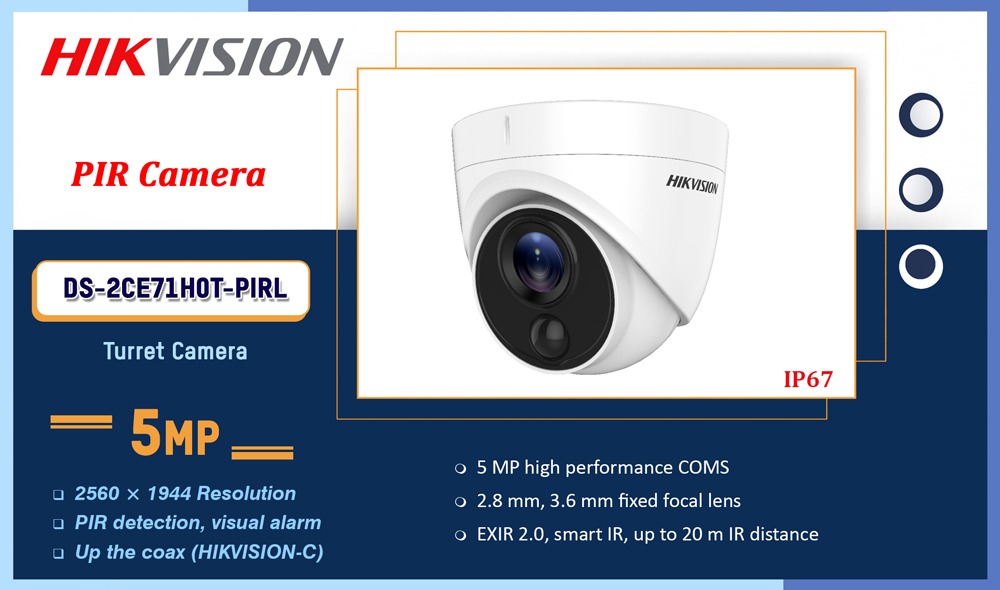

Datasheet: DS-2CE71H0T-PIRL
User Manual: DS-2CE71H0T-PIRL
Camera
- Image Sensor: 5.0 megapixel progressive scan CMOS
- Max. Resolution: 2560 (H) × 1944 (V)
- Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6mm fixed focal lens
- Focal Length & FOV: 85.5° (2.8 mm), 80.1° (3.6 mm)
- Lens Mount: M12
- Image Settings: Brightness, Contrast, Sharpness, Saturation, DNR, Mirror
- Frame Rate: PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): N/A
- Image Enhancement: BLC
- White Balance: Auto/Manual
- White Light: AUTO/OFF
- AGC: Yes
Supplement Detection(PIR)
- PIR Range: Angle: 110°, Range:11 m
Interface
- Video Output: TVI only
- Alarm: Yes
General
- Material: Enclosure: Plastic, Main body: Metal
- Dimension: Ø 109.8 mm × 89.75 mm (Ø 4.32″ × 3.53″ )
- Weight: Approx. 310 g (0.68 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Language: English
- Power Supply: 12 VDC ± 25%
- Consumption: Max. 4 W
- IR Range: Up to 20 m
Approval
- Protection: IP67
