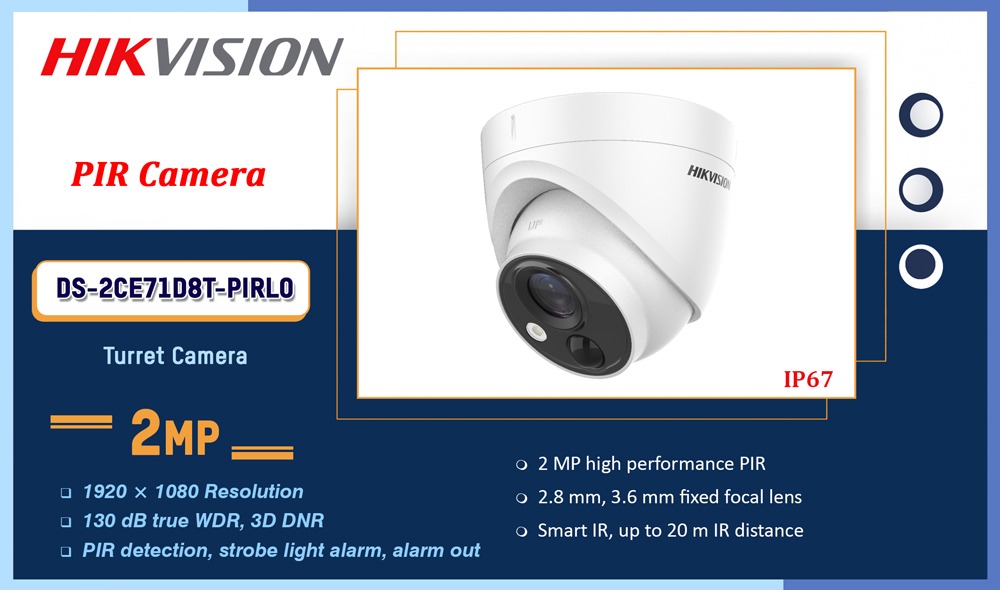

Datasheet: DS-2CE71D8T-PIRLO
User Manual: DS-2CE71D8T-PIRLO
Camera
- Sensor: 2MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
- Signal System: PAL/NTSC
- Light Alarm: Yes
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 103.5°, vertical FOV: 55°, diagonal FOV: 119°
- 3.6 mm, horizontal FOV: 79.1°, vertical FOV: 43°, diagonal FOV: 92°
- Lens Mount: M12
- Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, DNR , Mirror, Smart IR
- Frame Rate: TVI: 1080p@25fps/30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): ≥130 dB
- White Balance: Auto/Manual
- White Light: AUTO/OFF
- AGC: Support
Interface
- Video Output: 1 HD analog output
General
- Material
- Front cover: Metal
- Main body: Plastic
- Dimension: Φ 109.8 mm × 89.75 mm (Φ 4.32″ × 3.53″)
- Weight: Approx. 327 g (0.72 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera. - Consumption: Max. 3.9 W
- IR Range: Up to 20 m
Approval
- Protection: IP67
