Description

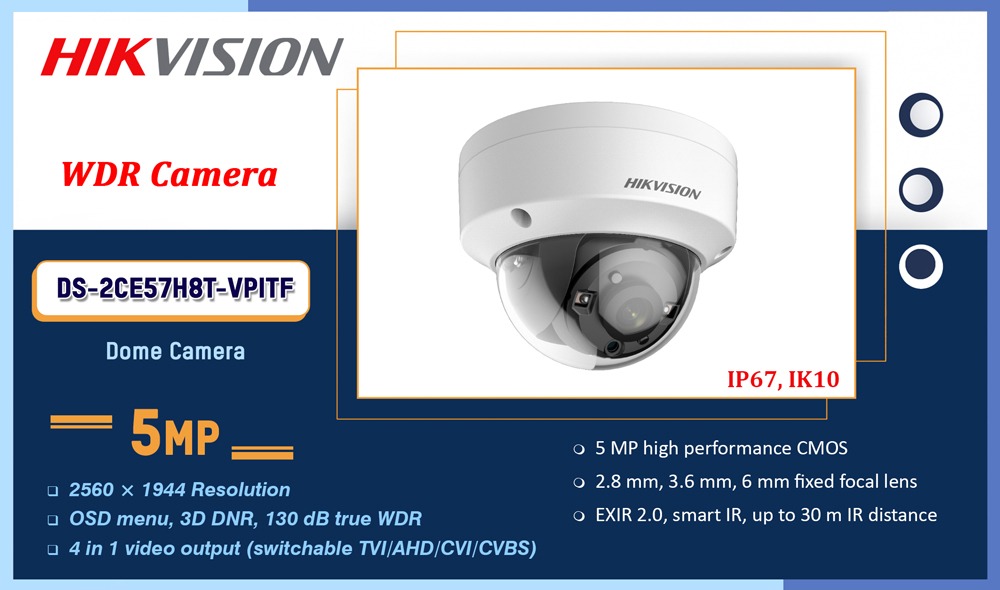

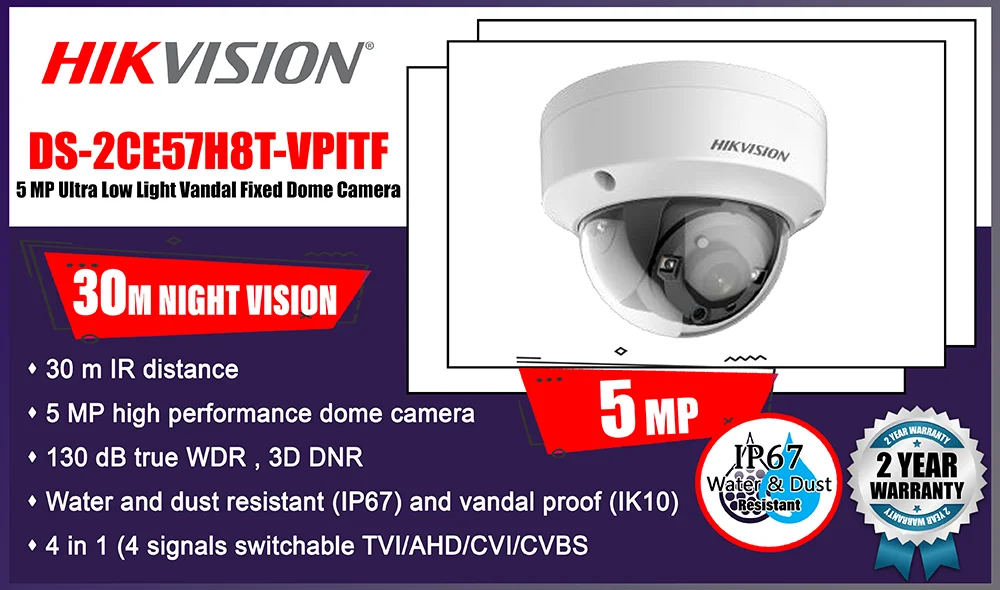

Datasheet: DS-2CE57H8T-VPITF
User Manual: DS-2CE57H8T-VPITF
Camera
- Lens: 2.8 mm, 3.6 mm, 6 mm fixed lens
- Horizontal Field Of View: 98° (2.8 mm), 78° (3.6 mm), 48° (6 mm)
- Lens Mount: M12
- Day & Night: IR cut filter
- Synchronization: Internal synchronization
- WDR (Wide Dynamic Range): ≥ 130 dB
- Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
- Image Sensor: 5 megapixel progressive scan CMOS
- Signal System: PAL/NTSC
- Frame Rate
- TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
- AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps
- CVI: 4 MP@25fps, 4 MP@30fps
- CVBS: PAL, NTSC
- Resolution: 2560 (H) × 1944 (V)
- Min. Illumination: Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50,000 s
- NTSC: 1/30 s to 1/50,000 s
Menu
- AGC: Yes
- Day/Night Mode: Auto/Color/BW (Black and White)
- White Balance: Auto/Manual
- Privacy Mask: 4 programmable privacy masks
- Motion Detection: 4 programmable areas
- Backlight Compensation: Yes
- WDR: Yes
- 3D DNR (Digital Noise Reduction): Level 1 to 9
- Language: English
- Functions: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
- Video Output: 1 HD analog output
- Switch Button: TVI/AHD/CVI/CVBS
General
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
- Power Supply: 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
- Power Consumption: Max. 5.8 W
- Material: Metal
- IR Range: Up to 30 m
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Dimensions: Φ 111 mm × 82.4 mm (Φ 4.4″ × 3.2″)
- Weight: Approx.500 g (1.10 lb.)
- Ingress Protection: IP67
- Impact Protection: IK10
