Description

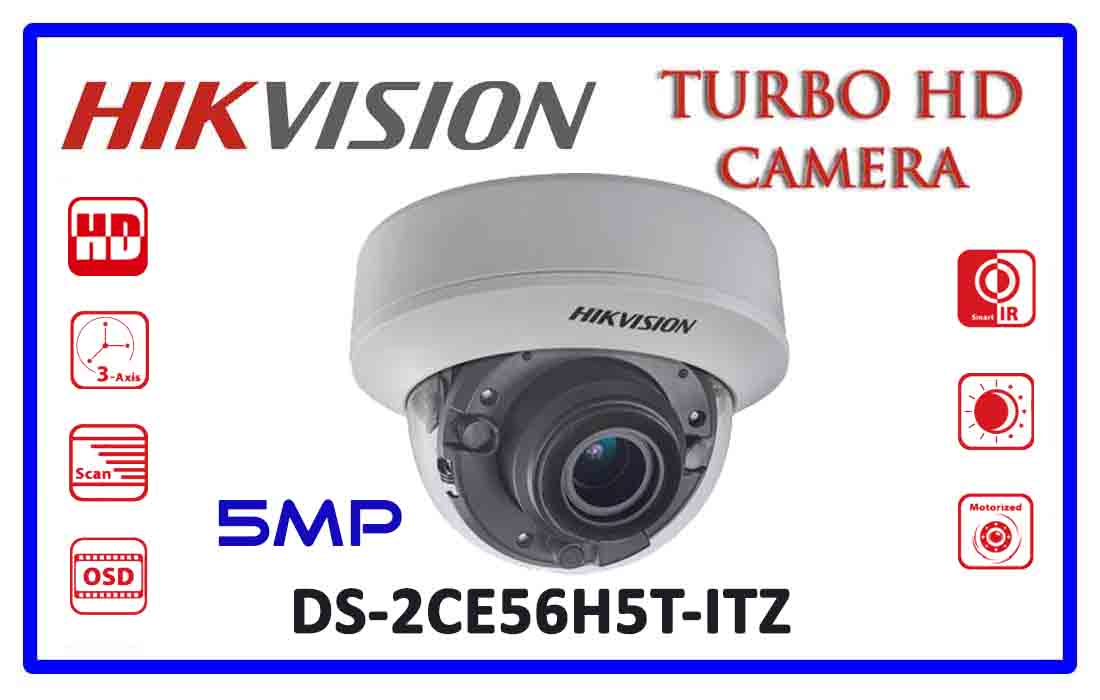

Product Description : DS-2CE56H5T-ITZ
User Manual : DS-2CE56H5T-ITZ
| Model | DS-2CE56H5T-ITZ |
|---|---|
| Image Sensor: | 5MP CMOS Image Sensor |
| Effective Pixels: | 2560 (H) × 1944 (V) |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens Mount: | φ14 |
| Adjustment Range: | Pan: 0° to 355°; Tilt: 0° to 75°; Rotate: 0° to 355° |
| Day& Night: | IR cut filter with auto switch |
| Video Frame Rate: | 2560 × 1944 @ 20fps |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| D/N Mode: | Auto / Color / B/W |
| BLC: | Support |
| AGC: | Support |
| Language: | English/Chinese |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC±25% -A: 12 VDC±25%, 24 VDC±25% |
| Weather Proof: | IP65 |
| IR Range: | Up to 30m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | Φ 136 mm × 101.9 mm (Φ 5.35″ × 4.01″) |
| Weight: | Approx. 600 g (1.32 lb.) |
