Description

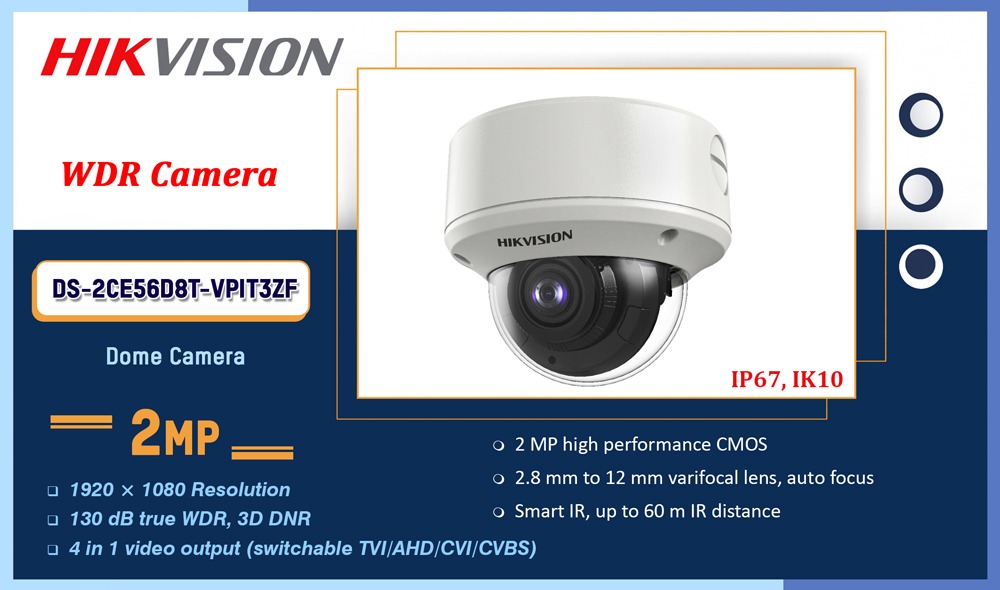

Datasheet: DS-2CE56D8T-VPIT3ZF
User Manual: DS-2CE56D8T-VPIT3ZF
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.7 mm to 13.5 mm motorized, auto focus
- Focal Length & FOV: 103° to 32.1°
- Lens Mount: Φ14
- Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, Mirror, Smart IR
- Frame Rate
- PAL: 1080p@25fps
- NTSC: 1080p@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): >130dB
- Image Enhancement: BLC, HLC
- White Balance: ATW/MANUAL
- AGC: Support
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Metal
- Dimension: Φ 145.2 mm × 124.1 mm ( Φ 5.72 × 4.9″)
- Weight: Approx. 610 g (1.34 lb.)
- Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%
- Consumption: Max. 5.8 W
- IR Range: Up to 60 m
Approval
- Protection: IK10 IP67
