Description

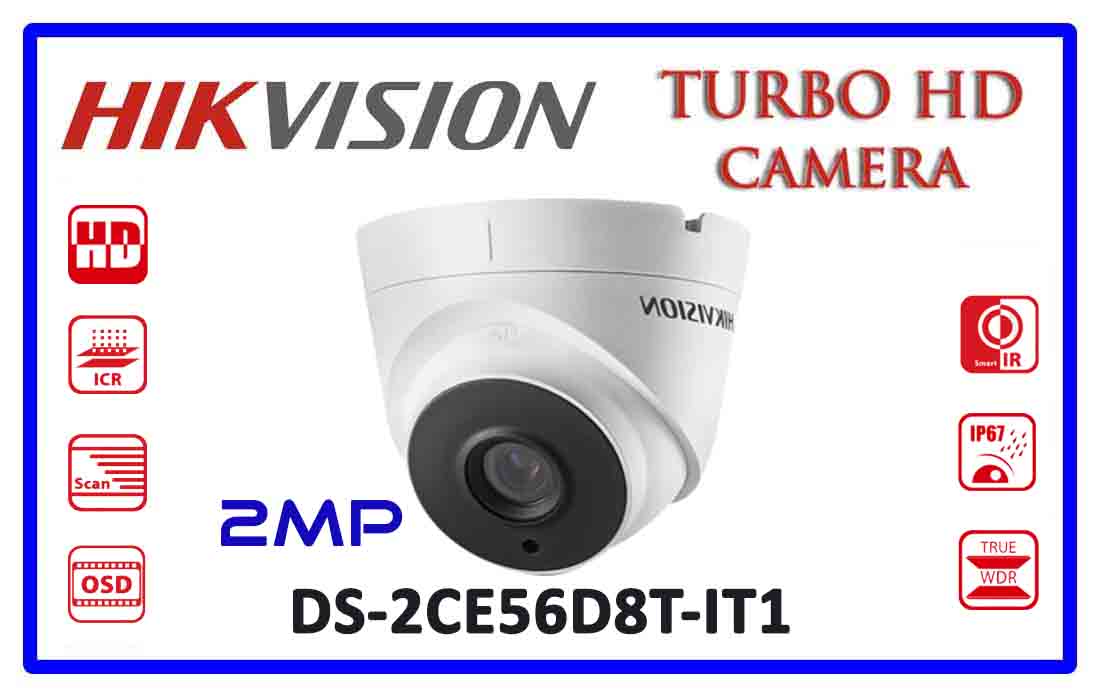

Product Description : DS-2CE56D8T-IT1
User Manual : DS-2CE56D8T-IT1
| Model | DS-2CE56D8T-IT1 |
|---|---|
| Image Sensor: | 2MP CMOS Image Sensor |
| Signal System: | PAL/NTSC |
| Effective Pixels: | 1920(H)*1080(V) |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120dB |
| Video Frame Rate: | 1080p@25fps/1080p@30fps |
| HD Video Output: | 1 Analog HD output |
| Synchronization: | Internal Synchronization |
| Up the Coax: | Support |
| Auto White Balance: | Auto/MWB |
| BLC: | Support |
| AGC: | Support |
| Language: | English/Chinese |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC±25% |
| Weather Proof: | IP67 |
| IR Range: | Up to 20m |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | φ110mm×93.2mm (φ4.33”×3.67”) |
| Weight: | 350g (0.77lb) |
