Description

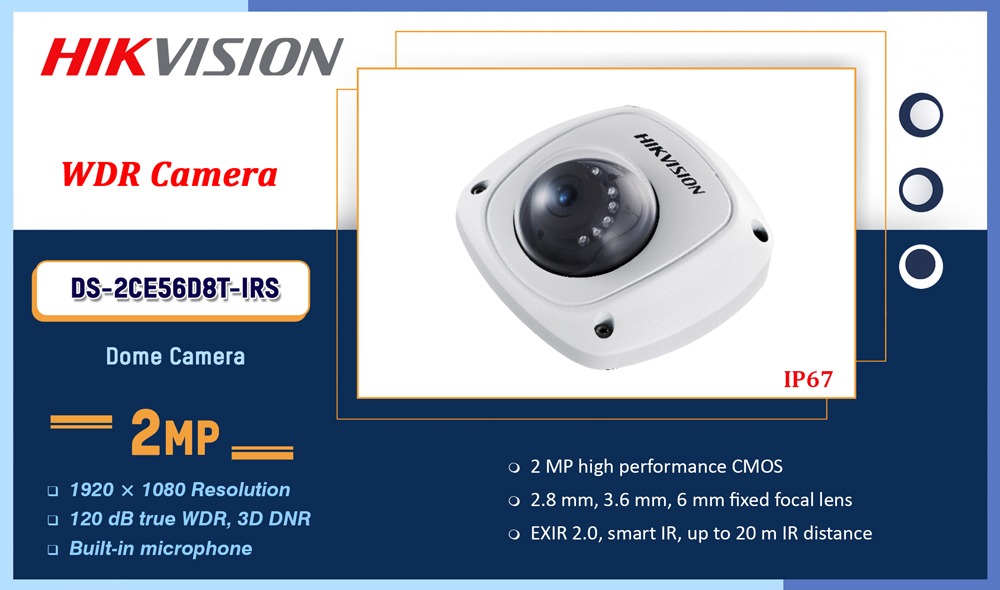

Datasheet: DS-2CE56D8T-IRS
User Manual: DS-2CE56D8T-IRS
Camera
- Image Sensor: 2 megapixel progressive CMOS sensor
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: -30° to 30°, Tilt: 0° to 80°, Rotate: -180° to 180°
- Signal System: PAL/NTSC
- Slow Shutter: Max.: 16 times
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6 mm, fixed focal lens
- Focal Length & FOV: 94.5° (2.8 mm), 79.1° (3.6 mm), 50° (6 mm)
- Lens Mount: M12
- Image Settings: Brightness, Sharpness, Mirror, Smart IR
- Frame Rate: PAL: 1080p@25fps,NTSC: 1080p@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): > 120 dB
- Image Enhancement: WDR/BLC/OFF
- Privacy Mask: ON/OFF, 4 programmable privacy masks
- Noise Reduction: Level 1 to 10
- White Balance: ATW/MANUAL
- AGC: Support
Interface
- Video Output: TVI only
- Audio
- In: Built-in microphone
- Out: 1 RCA
Event
- Motion Detection: 4 programmable motion areas
General
- Material: Metal & Plastic
- Dimension: 97 mm × 99.5 mm × 46.6 mm (3.82″ × 3.92″ × 1.83″)
- Weight: Approx. 300 g (0.66 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (no condensation)
- Language: English, Chinese
- Power Supply: 12 VDC ±30%
- Consumption: Max. 5 W
- IR Range: Up to 20 m
