Description

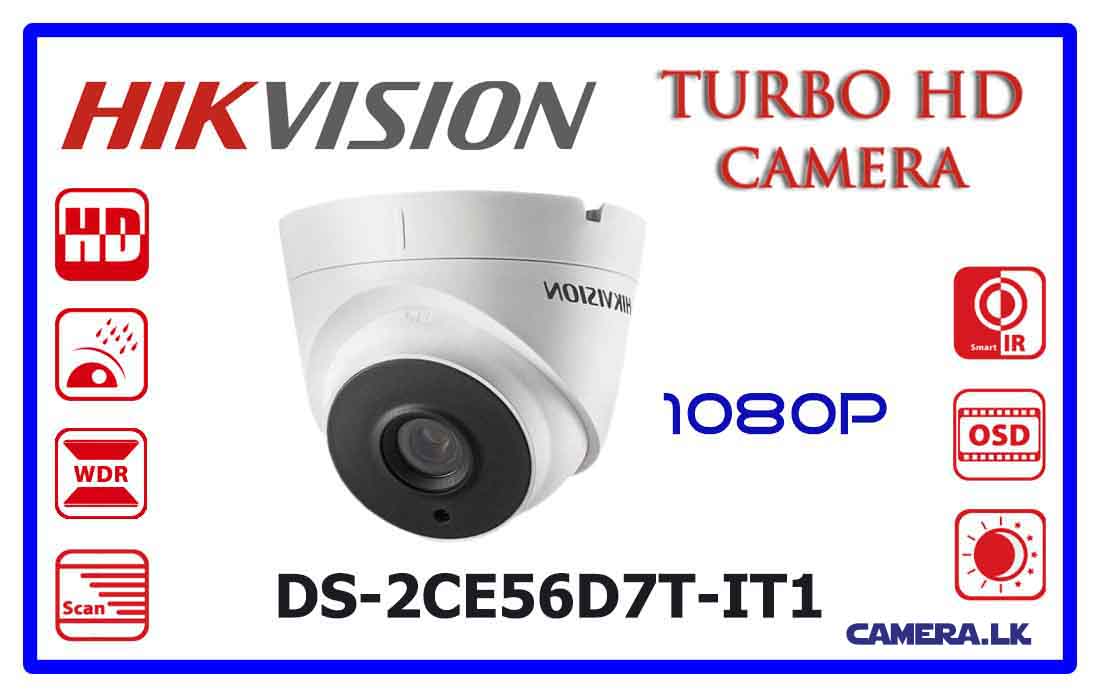

DS-2CE56D7T-IT1 – Product Description
Model | DS-2CE56D7T-IT1 |
---|---|
Image Sensor: | 2MP CMOS Image Sensor |
Signal System: | PAL/NTSC |
Effective Pixels: | 1928(H)*1088(V) |
Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
Shutter Time: | 1/25(1/30) s to 1/50,000 s |
Lens: | 2.8mm/3.6mm/6mm optional Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm) |
Lens Mount: | M12 |
Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
Day& Night: | IR cut filter with auto switch |
Wide Dynamic Range: | 120dB |
Video Frame Rate: | 1080p@25fps/1080p@30fps |
HD Video Output: | 1 Analog HD output |
Synchronization: | Internal Synchronization |
S/N Ratio: | More than 62 dB |
Up the Coax: | Support |
Auto White Balance: | Auto/MWB |
BLC: | Support |
AGC: | Support |
Language: | English/Chinese |
Function: | Wide Dynamic Range; Digital Noise reduction; Mirror; SMART IR |
Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
Power Supply: | 12 VDC±15% |
Power Consumption: | Max. 5W |
Weather Proof: | IP66 |
IR Range: | Up to 20m |
Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
Dimension: | φ110mm×93.2mm (φ4.33”×3.67”) |
Weight: | 350g (0.77lb) |
