Description

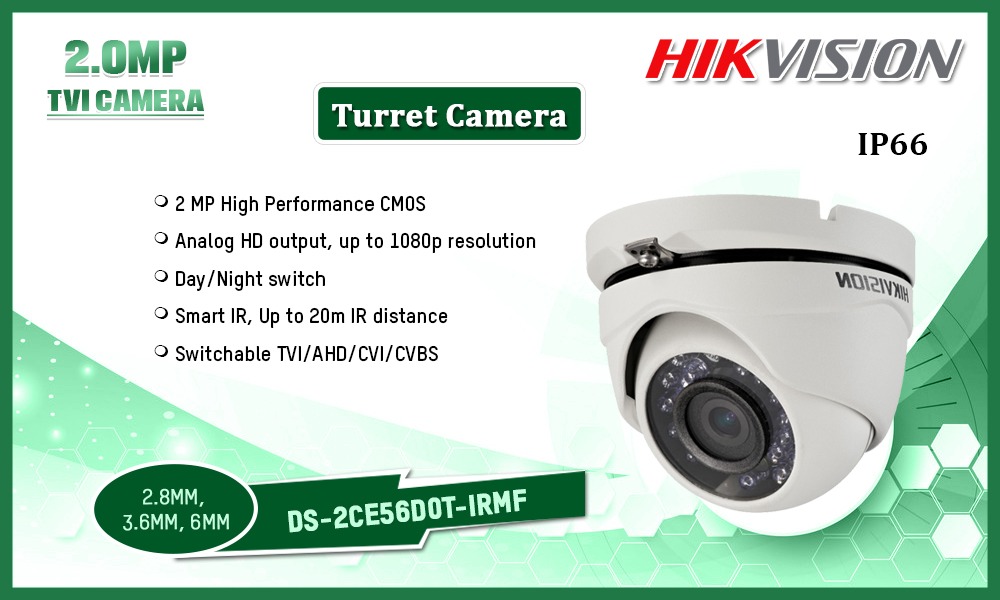

Datasheet: DS-2CE56D0T-IRMF
User Manual: DS-2CE56D0T-IRMF
Camera
- Image Sensor: 2MP CMOS Image Sensor
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time: 1/25 (1/30) s to 1/50,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 3.6 mm 2.8 mm, 6 mm fixed lens
- Focal Length & FOV: 103° (2.8 mm), 82.2° (3.6 mm), 54° (6 mm)
- Lens Mount: M12
- Image Settings: Brightness, Sharpness, DNR, Mirror
- Frame Rate: PAL: 1080p@25fps,NTSC: 1080p@30fps
- Day/Night Mode: Smart/color/BW(Black and White)
- Wide Dynamic Range (WDR): DWDR
- Image Enhancement: BLC
- AGC: Low/middle/high
Interface
- Video Output:Switchable TVI/AHD/CVI/CVBS
General
- Material: Metal
- Dimension: 89.47 × 67.6 mm (3.52″ × 2.7″)
- Weight: 340 g (0.75 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Language: English, Chinese
- Power Supply: 12 VDC±15%
- Consumption: Max. 4 W
- IR Range: Up to 20 m
Approval
- Protection: IP66
