Description

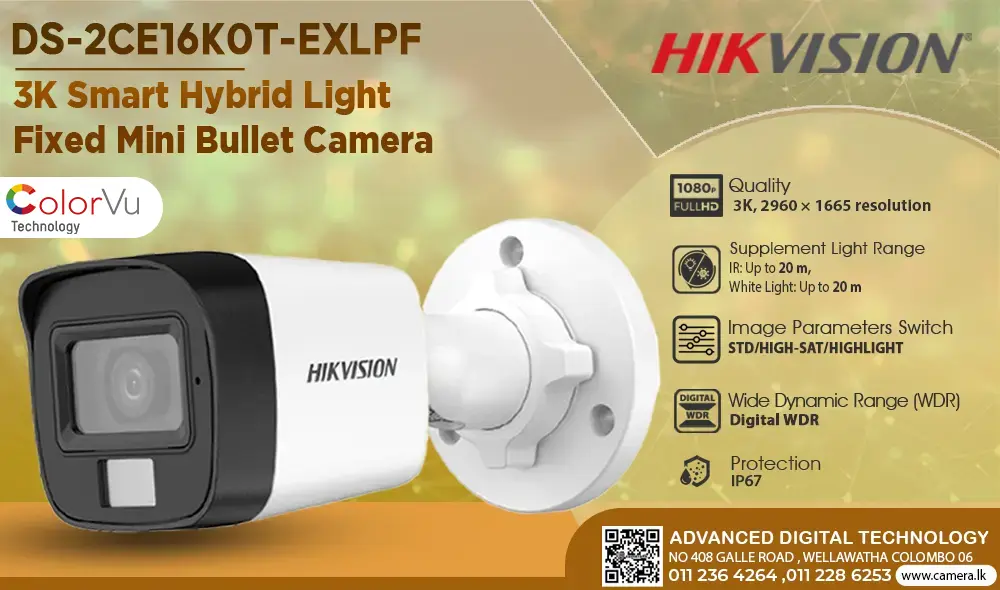

User Manual: DS-2CE16K0T-EXLPF
Specification
Camera
- Image Sensor: 3K CMOS
- Max. Resolution: 2960 (H) × 1665 (V)
- Min. Illumination: 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm fixed focal lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 101°, vertical FOV: 64°, diagonal FOV: 125°
- 3.6 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 98°
- Lens Mount: M12
Illuminator
- Supplement Light Type: White Light;IR
- Supplement Light Range
- IR : Up to 20 m
- White Light : Up to 20 m
- Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
- Image Settings: Brightness, Sharpness, Smart IR
- Frame Rate
- TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
- AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
- CVI: 4 MP @25 fps/30 fps
- CVBS: PAL/NTSC
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: DWDR/BLC/HLC/HLS/Global
- White Balance: Auto/Manual
- AGC: Yes
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Plastic
- Dimension: Ø70 mm × 138.8 mm (Ø2.76″ x 5.46″)
- Weight: Max. 150 g (0.33 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%, Max. 4.4 W
*You are recommended to use one power adapter to supply the power for one camera.
Approval
- Protection: IP67
