Description

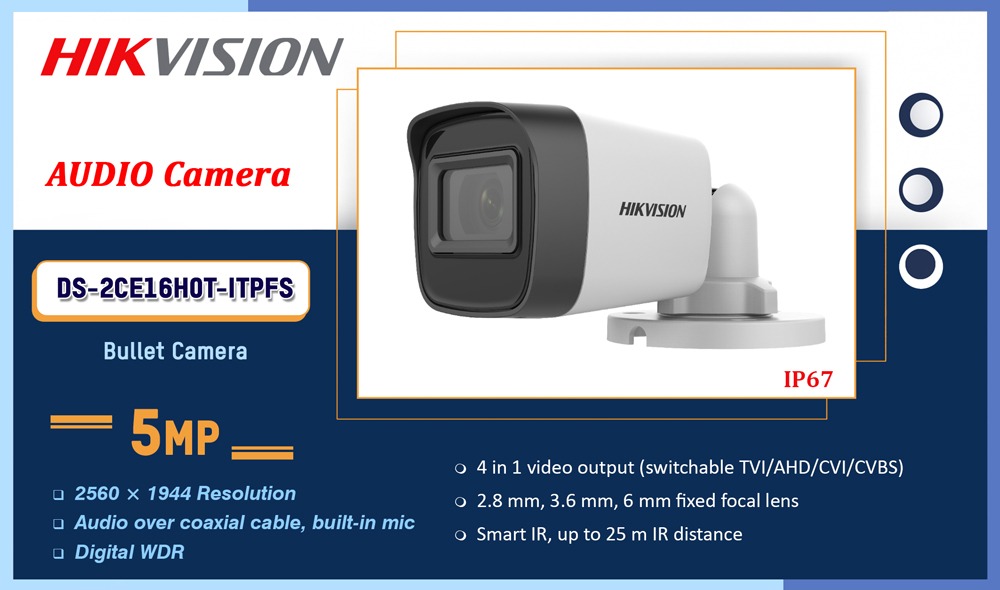

Datasheet: DS-2CE16H0T-ITPFS
User Manual: DS-2CE16H0T-ITPFS
Camera
- Image Sensor: 5 MP CMOS
- Max. Resolution: 2560 (H) × 1944 (V)
- Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°
- 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°
- 6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
- Lens Mount: M12
- Image Settings: Brightness, Sharpness, Mirror, Smart IR
- Frame Rate
- TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
- CVI: 4MP@30fps, 4MP@25fps
- AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
- CVBS: PAL/NTSC
- Day/Night Mode: Auto/Color/BW (Black and White)
- Image Enhancement: BLC
- White Balance: ATW/MANUAL
- AGC: Support
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Plastic
- Dimension: 58 mm × 61 mm × 158.6 mm (2.28″ × 2.40″ × 6.42″)
- Weight: Approx. 160 g (0.35 lb.)
- Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera. - Consumption: Max. 3.7 W
- IR Range: Up to 25 m
Approval
- Protection: IP67
