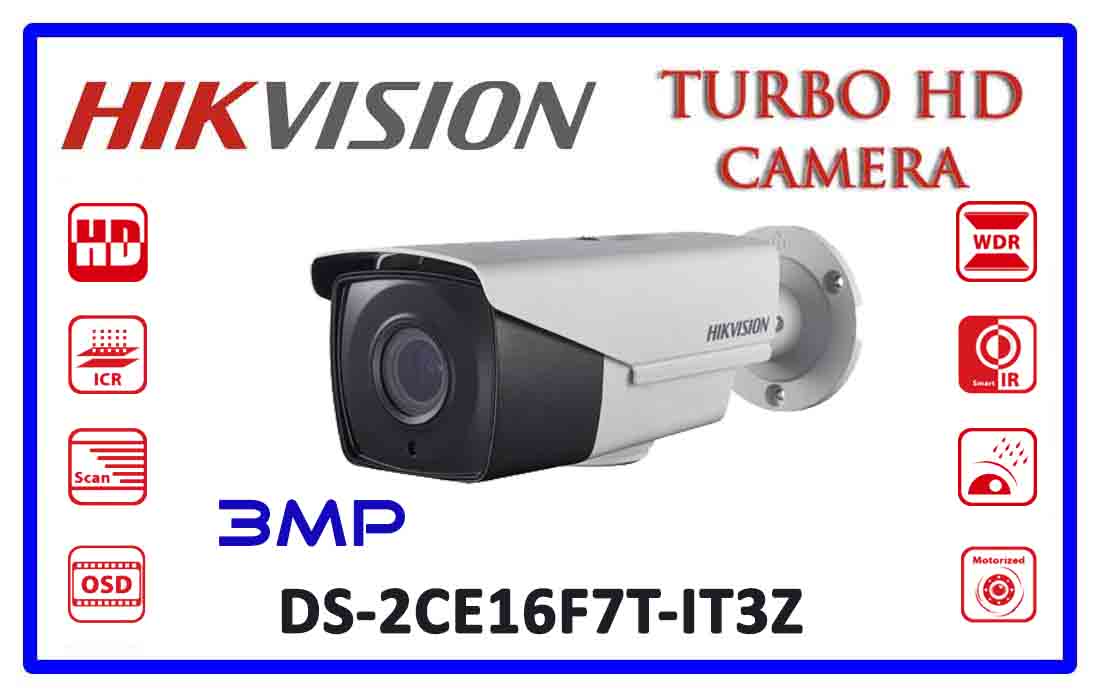

Product Description : DS-2CE16F7T-IT3Z
User Manual : DS-2CE16F7T-IT3Z
| Model | DS-2CE16F7T-IT3Z | |
|---|---|---|
| Camera | ||
| Image Sensor: | 3MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 2052(H)*1536(V) | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 90°, Rotation: 0 – 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120dB | |
| Video Frame Rate: | 1920 ×1536@18fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| Up the Coax: | Support | |
| Menu | ||
| Auto White Balance: | Auto/MWB | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English/Chinese | |
| General | ||
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% -A: 12 VDC±15%, 24 VAC±15% |
|
| Weather Proof: | IP66 | |
| IR Range: | Up to 40m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | 92mm×84.8mm×269.6mm (3.62”×3.34”×3.34”) | |
| Weight: | Approx. 900g ( 1.98lb) | |
