Description

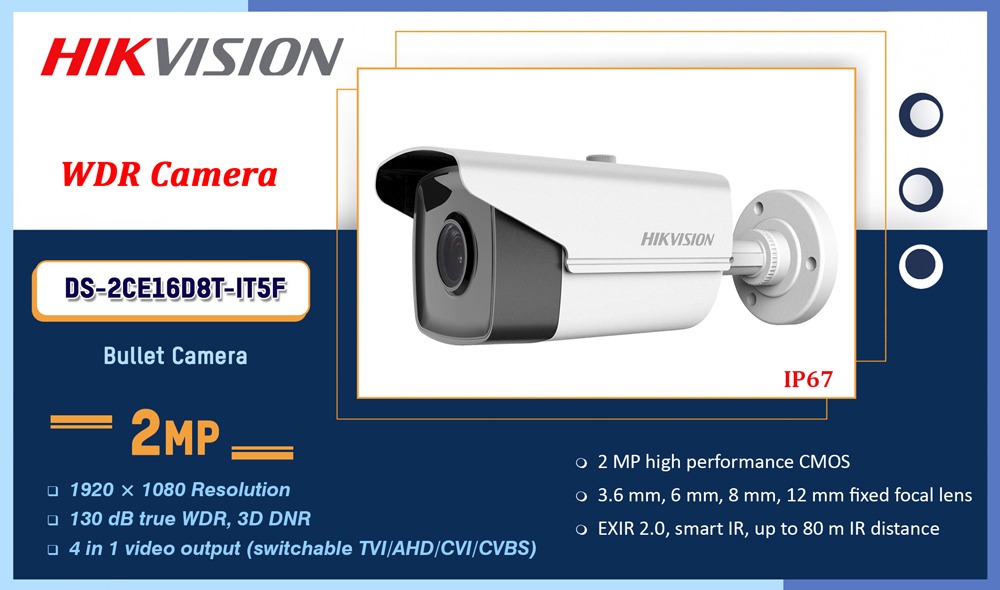

Datasheet: DS-2CE16D8T-IT5F
User Manual: DS-2CE16D8T-IT5F
Camera
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/25 s to 1/50, 000 s
- NTSC: 1/30 s to 1/50, 000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
- Focal Length & FOV: 79.1° (3.6 mm), 50.2° (6 mm), 38.7° (8 mm), 24.2° (12 mm)
- Lens Mount: M12
- Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, Mirror, Smart IR, HLC
- Frame Rate
- PAL: 1080p@25fps
- NTSC: 1080p@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: BLC, HLC
- White Balance: ATW/MANUAL
- AGC: Support
Interface
- Video Output: Switchable TVI/AHD/CVI/CVBS
General
- Material: Metal
- Dimension: 81.6 mm × 86.7 mm × 226 mm (3.2″ × 3.4″ × 8.9″)
- Weight: Approx. 560 g (1.23 lb.)
- Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
- Language: English
- Power Supply: 12 VDC ± 25%
- Consumption: Max. 5.2 W
- IR Range: Up to 80 m
Approval
- Protection: IP67
