Description

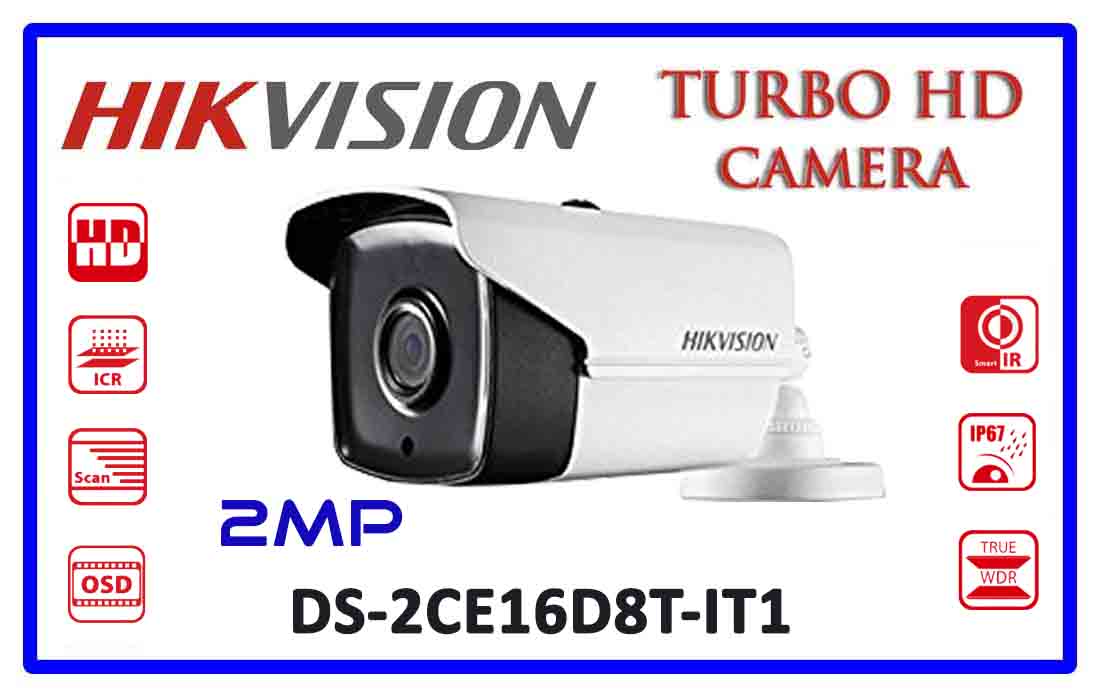

Product Description : DS-2CE16D8T-IT1
User Manual : DS-2CE16D8T-IT1
Model | DS-2CE16D8T-IT1 |
---|---|
Image Sensor: | 2MP CMOS Image Sensor |
Signal System: | PAL/NTSC |
Effective Pixels: | 1920(H)*1080(V) |
Shutter Time: | 1/25(1/30) s to 1/50,000 s |
Lens Mount: | M12 |
Adjustment Range: | Pan: 0° to 360°, Tilt: 0° to 180, Rotate: 0° to 360° |
Day& Night: | IR cut filter with auto switch |
Wide Dynamic Range: | 120dB |
Video Frame Rate: | 1080p@25fps/1080p@30fps |
HD Video Output: | 1 Analog HD output |
Synchronization: | Internal Synchronization |
Up the Coax: | Support |
Auto White Balance: | Auto/MWB |
BLC: | Support |
AGC: | Support |
Language: | English/Chinese |
Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
Power Supply: | 12 VDC±25% |
Weather Proof: | IP67 |
IR Range: | Up to 20m |
Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
Dimension: | 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″) |
Weight: | Approx. 680g (1.5lb) |
