Description

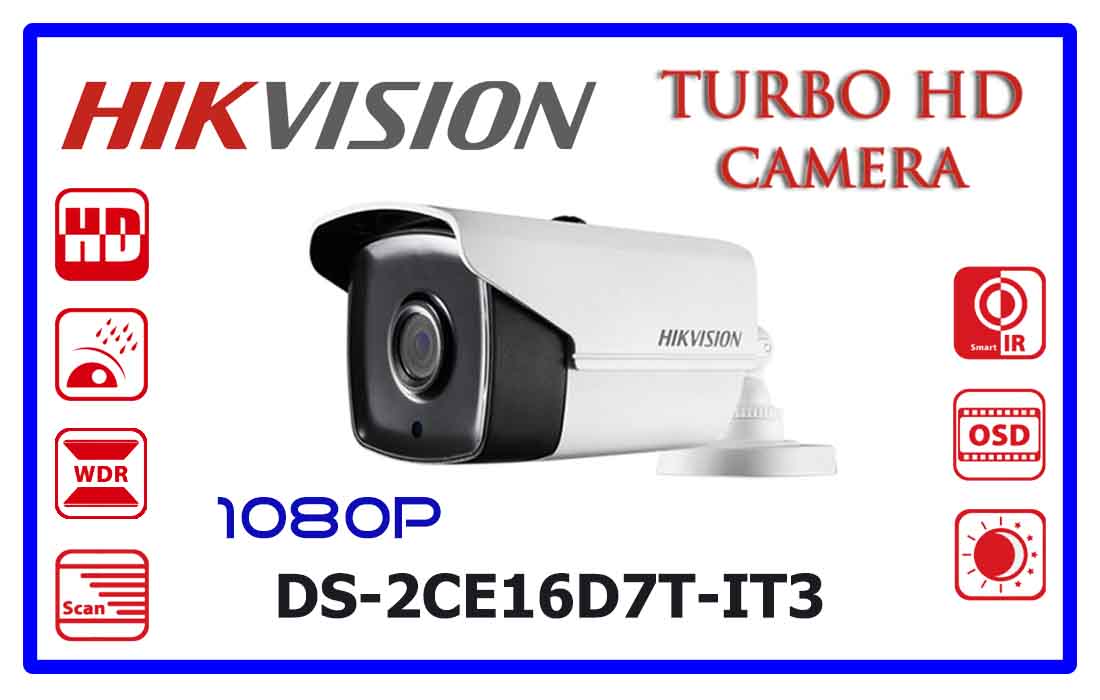

DS-2CE16D7T-IT3 – Product Description
Model | DS-2CE16D7T-IT3 |
---|---|
Image Sensor: | 2MP CMOS Image Sensor |
Signal System: | PAL/NTSC |
Effective Pixels: | 1928(H)*1088(V) |
Min. Illumination: | 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR |
Shutter Time: | 1/25(1/30) s to 1/50,000 s |
Lens: | 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm optional Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.3°(12mm), 18.8°(16mm) |
Lens Mount: | M12 |
Adjustment Range: | Pan: 0° – 360°; Tilt:0° – 90°; Rotate: 0° – 360° |
Day& Night: | IR cut filter with auto switch |
Wide Dynamic Range: | 120dB |
Video Frame Rate: | 720p@25fps/720p@30fps |
HD Video Output: | 1 Analog HD output |
Synchronization: | Internal Synchronization |
S/N Ratio: | More than 62 dB |
D/N Mode: | Color/BW/SMART |
Auto White Balance: | Auto/MWB |
BLC: | Support |
AGC: | Support |
Language: | English/Chinese |
Function: | Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR |
Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
Power Supply: | 12 VDC±15% |
Power Consumption: | Max. 5W |
Weather Proof: | IP66 |
IR Range: | Up to 40m |
Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
Dimension: | 86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″) |
Weight: | Approx. 680g (1.5lb) |
