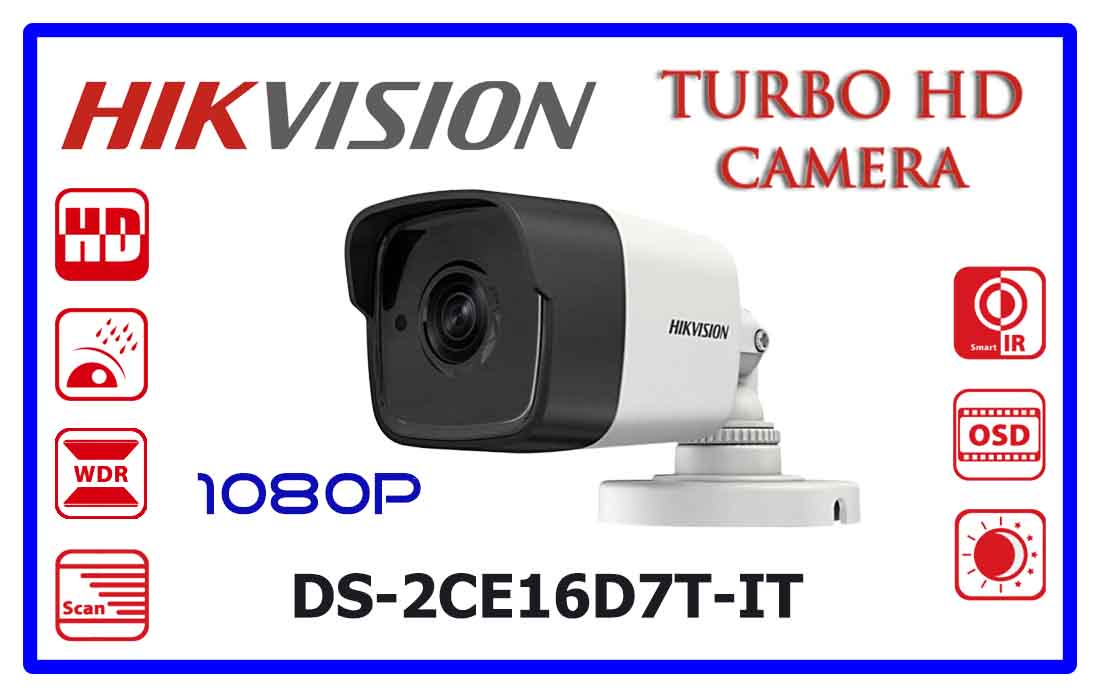

DS-2CE16D7T-IT
You are here: Home \ Products \ DS-2CE16D7T-IT

DS-2CE16D7T-IT

logo-2
2 Megapixel high-performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night
OSD menu, DNR, Smart IR
True WDR, up to 120dB
EXIR technology, up to 20m IR distance
IP66 weatherproof
Up the Coax(HIKVISION-C)

Categories: , , ,

Description

DS-2CE16D7T-IT – Product Description

Model DS-2CE16D7T-IT
Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1920(H)*1080(V)
Min. Illumination: 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 2.8mm, 3.6mm, 6mm optional
Angle of View: 103°(2.8mm), 82.2°(3.6mm), 54°(6mm)
Adjustment Range: Pan: 0 – 360°, Tilt: 0 – 90°, Rotation: 0 – 360°
Day& Night: IR cut filter with auto switch
Video Frame Rate: 1080p@25fps/1080p@30fps
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
BLC: On/Off
AGC: Support
Language: English/Chinese
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 V DC±10%
Power Consumption: Max. 5W
Weather Proof: IP66
IR Range: Up to 20m
Dimension: 58.5mm×55.5mm×153.6mm (2.30”×2.19”×6.05”)
Weight: 370g (0.82lb)
