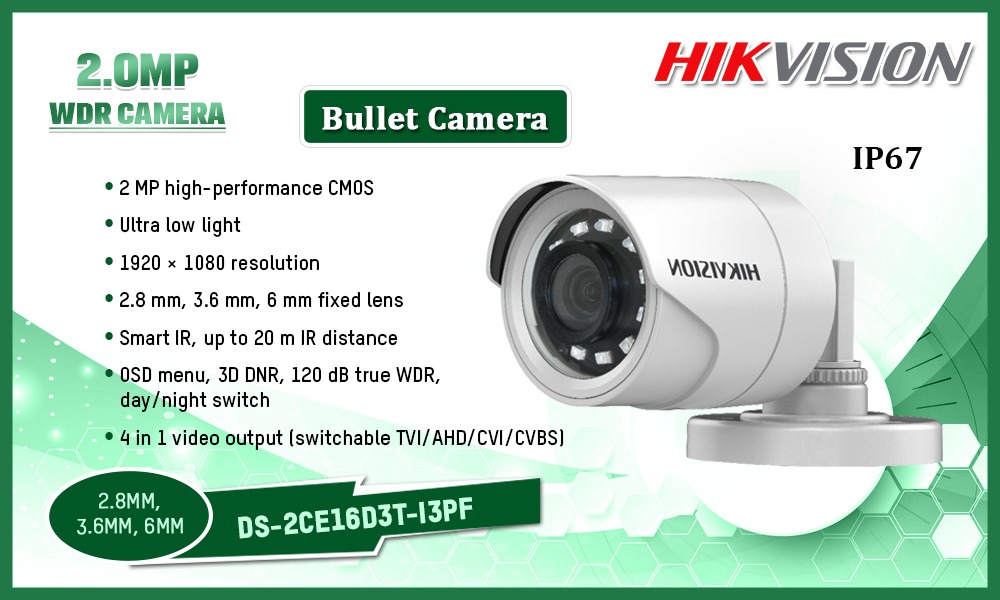

Description
Datasheet: DS-2CE16D3T-I3PF
User Manual: DS-2CE16D3T-I3PF
Camera
- Image Sensor: 2.0 megapixel progressive scan CMOS
- Max. Resolution: 1920 (H) ×1080 (V)
- Min. Illumination: 0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
- Shutter Time: PAL: 1/25 s to 1/50, 000 s, NTSC: 1/30 s to 1/50, 000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6 mm
- Focal Length & FOV: 106° (2.8 mm), 82° (3.6 mm), 51° (6 mm)
- Lens Mount: M12
- Parameters Switch: STD/HIGH-SAT
- Image Settings: Brightness, Sharpness, 3D DNR, Mirror, Smart IR
- Frame Rate: PAL: 1080p@25fps,NTSC: 1080p@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)≥ 120 dB
- Image Enhancement: BLC, HLC
- Noise Reduction: Level 1 to 9
- AGC: High/Medium/Low
Interface
- Video Output: TVI/AHD/CVI/CVBS
General
- Material: Plastic
- Dimension: 153.6 mm × 60.4 mm (6.05″ × 2.38″)
- Weight: Approx. 163 g (0.36 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
- Language: English
- Power Supply: 12 VDC ±25%,*You are recommended to use one power adapter to supply the power for one camera.
- Consumption: Max. 4.4 W
- IR Range: Up to 20 m
Approval
- Protection: IP67
