DS-2CE16D0T-WL5
You are here: Home \ Products \ DS-2CE16D0T-WL5

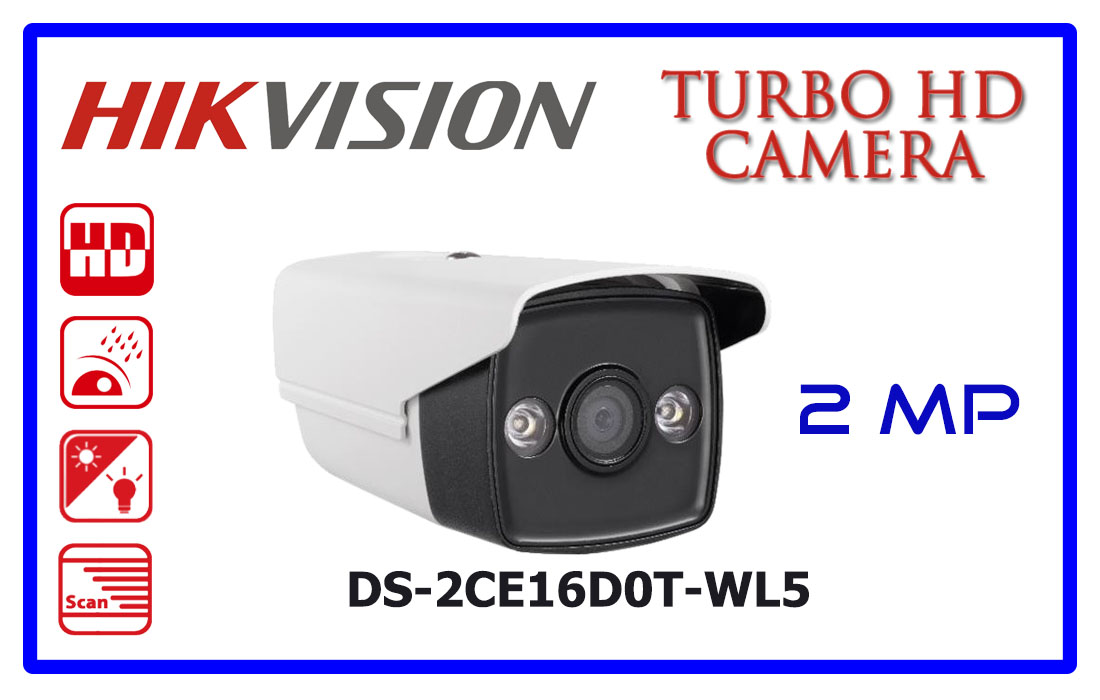

DS-2CE16D0T-WL5

logo-2

• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• White supplement light (up to 50 m distance)
• IP66
• Up the Coax(HIKVISION-C)

Categories: , , ,

Description

DS-2CE16D0T-WL5 – Product Description

Model DS-2CE16D0T-WL5
Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1920(H)*1080(V)
Min. Illumination: 0.01 Lux@(F1.2, AGC ON)
Shutter Time: 1/25(1/30) s to 1/50,000 s
Lens: 3.6 mm ( 6 mm optional)
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 90°
Video Frame Rate: 1080p@25fps/1080p@30fps
HD Video Output: 1 Analog HD output
Synchronization: Internal Synchronization
S/N Ratio: More than 62 dB
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 V DC±10%
Power Consumption: Max. 1 W (white supplement light off)
Max. 4.5 W ( white supplement light on )
Weather Proof: IP66
Dimension: 194.07 mm × 93.52 mm × 93.87 mm (7.64″ × 3.68″ × 3.7″ )
Weight: Approx. 450 g (0.99 lb.)
Every piece of security system equipment we carry has been fully tested to ensure our customers receive the best quality, performance and reliability. We are authorized dealers for all the security camera system products you see here, which allows us to offer the best pricing and an exceptional level of customer services. Our Customer support is unmatched with our 1 year warranty and lifetime technical support.
