Description

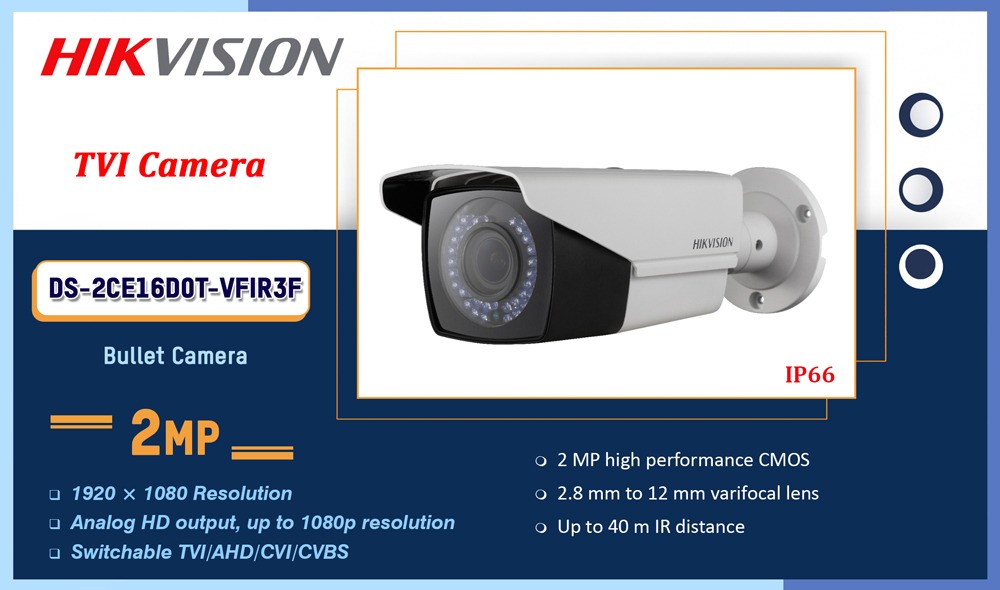

Datasheet: DS-2CE16D0T-VFIR3F
User Manual: DS-2CE16D0T-VFIR3F
Camera
- Image Sensor: 2 MP CMOS image sensor
- Max. Resolution: 1920 (H) × 1080 (V)
- Min. Illumination: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
- Shutter Time: 1/25 (1/30) s to 1/50,000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
- Signal System: PAL/NTSC
Lens
- Lens Type: 2.8 mm ~ 12 mm @ F1.4
- Focal Length & FOV: 102.25° ~ 32 °
- Lens Mount: Φ14
- Wide Dynamic Range (WDR): >62 dB
Interface
- Video Output: 1 HD analog output
General
- Dimension: 92 mm × 84.8 mm × 269.6 mm (3.62″ × 3.34″ × 3.34″)
- Weight: Approx. 900 g (1.98 lb)
- Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
- Power Supply: 12 VDC±15%
- Consumption: Max. 5 W
- IR Range: Up to 40 m
Approval
- Protection: IP66
