Description

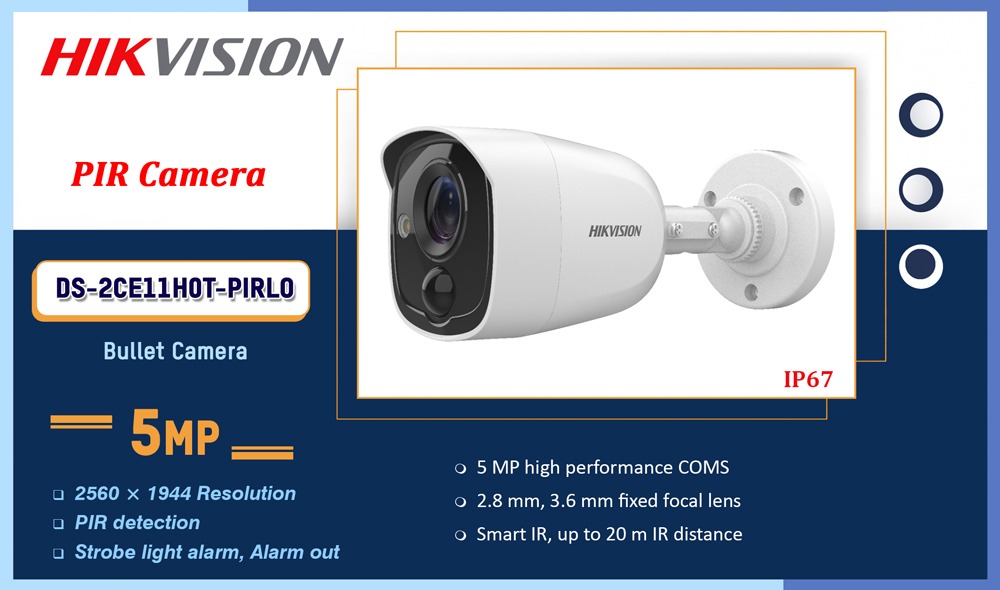

Datasheet: DS-2CE11H0T-PIRLO
User Manual: DS-2CE11H0T-PIRLO
Camera
- Image Sensor: 5 MP CMOS image sensor
- Max. Resolution: 2560 (H) × 1944 (V)
- Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time
- PAL: 1/20 s to 1/50,000 s
- NTSC: 1/20 s to 1/50,000 s
- Day & Night: ICR
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
- Signal System: PAL/NTSC
- Light Alarm: Yes
Lens
- Lens Type: 2.8 mm, 3.6 mm, 6mm fixed lens
- Focal Length & FOV
- 2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.8°, diagonal FOV: 110.7°
- 3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.8°, diagonal FOV: 105.9°
- Lens Mount: M12
- Parameters Switch: STD/HIGH-SAT
- Settings: Brightness, Sharpness, DNR , Mirror, Smart IR
- Frame Rate: TVI: 5 MP@20fps, 4 MP@25fps, 4 MP@30fps, 1080P@25fps, 1080P@30fps
- Day/Night Mode: Auto/Color/BW (Black and White)
- Wide Dynamic Range (WDR): Digital WDR
- White Balance: Auto/Manual
- White Light: AUTO/OFF
- AGC: Support
Interface
- Video Output: 1 HD analog output
General
- Material: Plastic
- Dimension: 68 mm × 70 mm × 179.8 mm (2.68″ × 2.76″ × 7.08″)
- Weight: Approx. 358 g (0.79 lb.)
- Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Communication: HIKVISION-C
- Language: English
- Power Supply: 12 VDC ± 25%
- Consumption: Max. 3.5 W
- IR Range: Up to 20 m
Approval
- Protection: IP67
