DS-2CE10KF3T-L

logo-2

Key Features

  • High quality imaging with 3K, 2960 × 1665 resolution
  • Excellent low-light performance
  • 24/7 color imaging with F1.0 aperture
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm and 3.6 mm fixed focal lens
  • Up to 20 m IR distance for bright night imaging
  • Up to 20 m white light distance for bright night imaging
  • Water and dust resistant (IP67)

Description

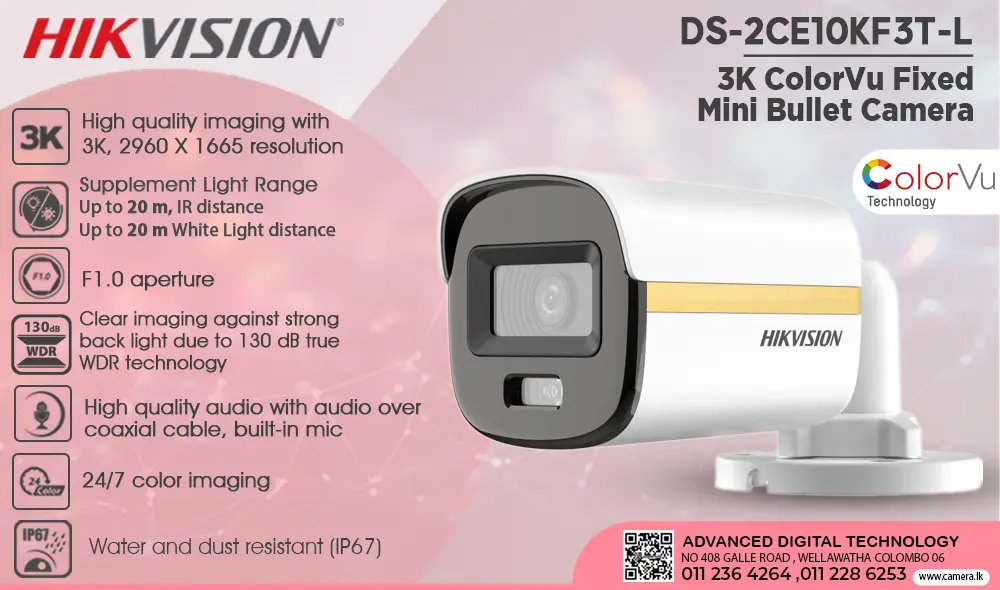

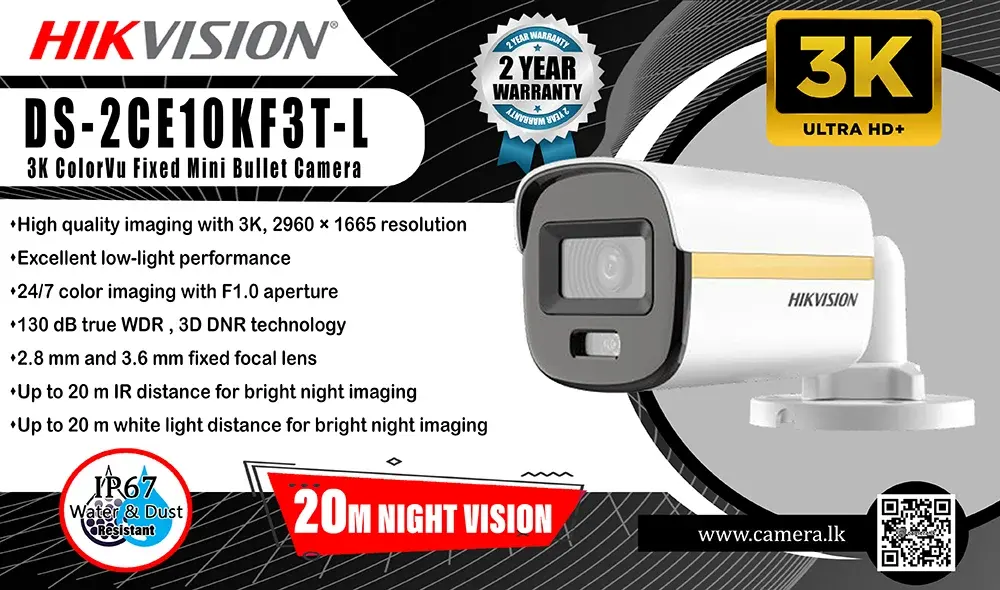

DS-2CE10KF3T-L - Hikvision 3K ColorVu Fixed Mini Bullet Camera Camera.lk Colombo Srilanka
Datasheet: DS-2CE10KF3T-L


User Manual: DS-2CE10KF3T-L

Specification

Camera

  • Image Sensor: 3K CMOS
  • Signal System: PAL/NTSC
  • Max. Resolution: 2960 (H) × 1665 (V)
  • Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens

  • Lens Type: 2.8 mm and 3.6 mm fixed focal lens
  • Focal Length & FOV
    • 2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 139°
    • 3.6 mm, horizontal FOV: 90°, vertical FOV: 49°, diagonal FOV: 105°
  • Lens Mount: M12

Illuminator

  • Supplement Light Range: IR: Up to 20 m,White Light: Up to 20 m
  • Smart Supplement Light: Yes


  • Frame Rate: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
  • Wide Dynamic Range (WDR): ≥130 dB
  • Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
  • AGC: Yes
  • Day/Night Mode: Auto/Color/BW (Black and White)
  • White Balance: Auto/Outdoor/Global/Manual
  • Image Enhancement: WDR;Global;HLC;BLC;HLS
  • Noise Reduction: 3D DNR/2D DNR
  • Image Settings: Brightness;Contrast;Mirror;Smart Light;Anti-Banding

Interface

  • Video Output: 1 HD analog output

Event

  • Motion Detection: 4 programmable motion areas

General

  • Power: 12 VDC ± 25%, 0.47 A, max. 5.7 W,*You are recommended to use one power adapter to supply the power for one camera.
  • Language: English
  • Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
  • Material: Metal
  • Communication: HIKVISION-C
  • Dimension: 161.1 mm × 68.4 mm × 65.2 mm (6.34″ × 2.69″ × 2.57″)
  • Weight: Approx. 405 g (0.89 lb.)

Approval

  • Protection: IP67
