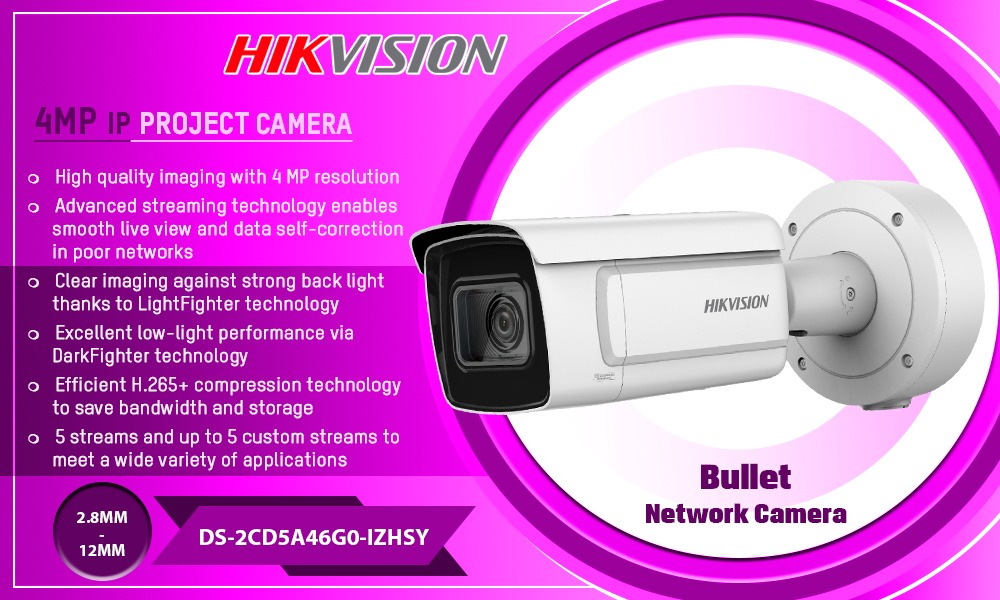

DS-2CD5A46G0-IZHSY

Description

Datasheet: DS-2CD5A46G0-IZHSY

User Manual: DS-2CD5A46G0-IZHSY

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Speed: 1 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 140 dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focus: Auto, semi-auto, manual
• Lens Type: Motorized lens, 2.8 to 12 mm
• FOV: Horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45°
• Aperture: F1.2 to 2.5
• Lens Mount: Integrated
• Auto-Iris: P-iris

Illuminator

• IR Range: up to 50 m
• Wavelength: 850 nm

Video

• Max. Resolution: 2560 × 1440
• Video Stream: 5 defined streams and up to 5 custom stream
• Main Stream
  • 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • 60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50Hz: 25fps (704 × 576, 640 × 480)
  • 60Hz: 30fps (704 × 480, 640 × 480)
• Third Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
  • 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fifth Stream
  • 50Hz: 25fps (704 × 576, 640 × 480)
  • 60Hz: 30fps (704 × 480, 640 × 480)
• Custom Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
  • 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video Compression
  • Main stream: H.265+/H.265/H.264+/H.264
  • Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream support
• H.265+: Main stream support
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3
• Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)

Network

• Simultaneous Live View: Up to 20 channels
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Smooth Streaming: Yes
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
• Network Storage: microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome57.0+，Firefox52.0+


• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
• Target Cropping: Yes
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
• Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS, distortion correction
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• SNR: ≥52dB

Interface

• Audio: 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
• Alarm: 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A)
• Video Output: 1Vp-p composite output (75 Ω/CVBS), only for adjustment
• On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 256 GB
• Hardware Reset: Reset via reset button on camera body, web browser and client software
• Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port
• Power Output: 12 VDC, max. 200mA
• Interface StyleTail cables
• Heater: yes

Event

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection
• Counting: Counting

General

• Linkage Method: Trigger recording：memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
• Firmware Version: 5.6.0
• Web Client Language: 32 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
• Embedded Open Platform: Yes. The camera supports installation and running up to 4 extra applications.
• Storage Conditions: -30 °C to 65 °C (-22 °F to 149 °F) Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F) Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 20%, two-core terminal block; reverse polarity protection, PoE (802.3at, class 4)
• Power Consumption And Current: With extra load: 12 VDC, 1.17 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.39 A to 0.29 A, max. 16.4 W; Without extra load: 12 VDC, 0.97 A, max. 11.6 W; PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13.2 W

  With extra load\” means that an extra device is connected to and powered by the camera.”

• Camera Dimension
  • Camera: Φ140 × 351 mm (Φ5.5″ × 13.8\”)
  • With package: 405 × 190 × 180 mm (15.9 × 7.5\” × 7.1\”)”
• Camera Weight
  • Camera: approx. 1.85 kg (4.1 lb.)
  • With package: approx. 2.95 kg (6.5 lb.)

Approval

• EMC
  • IC: IC-VoC(ICES-003 Issue 7:2020),
  • FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),
  • KC: KN32:2015,KN35:2015,
  • CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),
  • RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015
• Safety
  • CB: IEC 60950-1,
  • UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,
  • LOA: SANS IEC60950-1,
  • BIS: IS 13252(Part 1):2010+A1:2013+A2:2015,
  • CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
• Environment
  • CE: CE-RoHS(RoHS Directive 2011/65/EU, 2012/19/EU,
  • REACH SVHC: Regulation (EC) No 1907/2006
• Protection
  • Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
  • Anti-Corrosion: NEMA 4X: NEMA 250-2014
