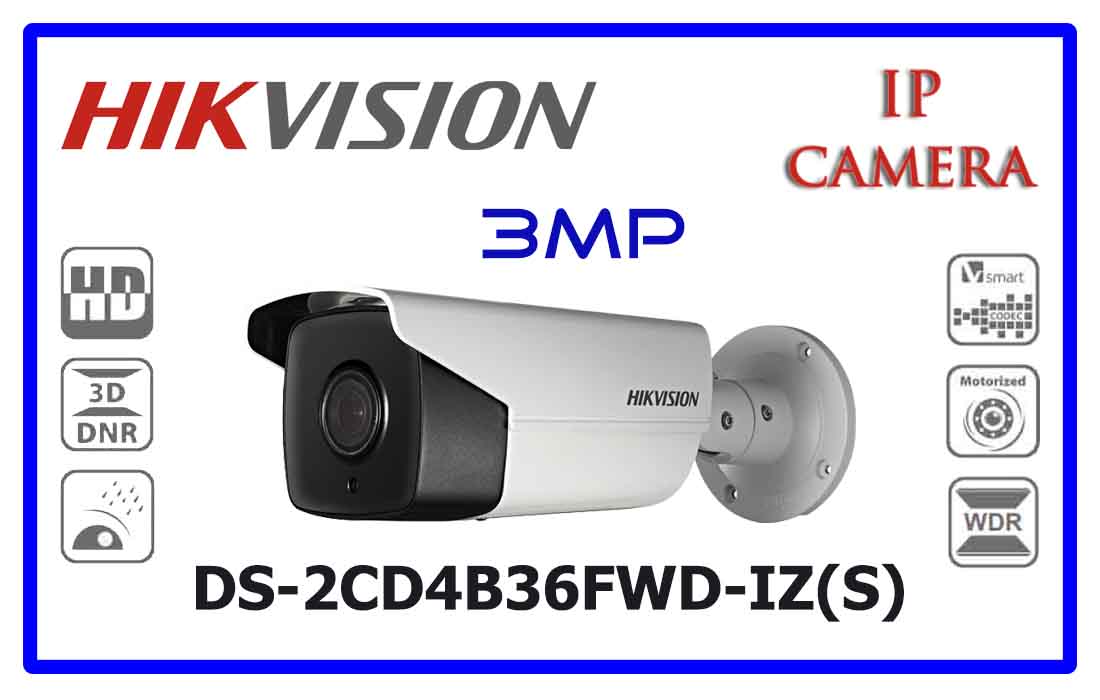

Model | DS-2CD4B36FWD-IZ(S) |
---|---|
Image Sensor: | 1/2.8” CMOS progressive scan CMOS |
Min. Illumination: | Color: 0.005 Lux @ (F1.2, AGC ON), 0.007 Lux @ (F1.4, AGC ON), 0 Lux with IR B/W: 0.0005 Lux @ (F1.2, AGC ON), 0.0007 Lux @ (F1.4, AGC ON), 0 Lux with IR |
Shutter time: | 1 s to 1/100,000 s |
Slow shutter: | Support |
Lens: | 2.8 to 12 mm F1.4, horizontal angle of view 88.5° to 32.8° |
Lens Mount: | φ14 |
Auto Iris: | DC drive |
Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
Day& Night: | IR Cut Filter |
Wide Dynamic Range: | 120 dB |
Digital noise reduction: | 3D DNR |
Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG |
H.264 code profile: | Baseline Profile/Main Profile/High Profile |
Video bit rate: | 32Kbps~16Mbps |
Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM |
Audio bit rate: | Baseline Profile/Main Profile/High Profile |
Triple Streams: | Yes |
Max. Image Resolution: | 2048×1536 |
Frame Rate: | 50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) |
Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) |
Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240) |
Image Enhancement: | BLC/3D DNR/Defog/EIS/HLC |
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
Target Cropping: | Support |
ROI: | Support 4 fixed region for each stream, and dynamic face tracking |
Picture Overlay: | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
Day/Night Switch: | Auto/Schedule/Triggered by Alarm In (-S) |
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger: | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General Function: | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering |
System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Audio: | With –S model: 1 input (line in), 1 output |
Communication Interface: | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface (-S) |
Alarm: | With –S model: 1 input, 1 output (up to 24 VDC 1 A or 110 VAC 500 mA) |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button: | Yes |
Environment Noise Filtering: | Support |
Audio I/O: | Support dual audio track, stereo |
Audio Sampling Rate: | 16kHz / 32kHz / 44.1kHz / 48kHz |
Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
Line Crossing Detection: | Cross a pre-defined virtual line |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
Region Entrance: | Enter a pre-defined virtual region from the outside place |
Region Exiting: | Exit from a pre-defined virtual region |
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. |
Exception Detections: | Scene change detection |
Recognition: | Face Detection |
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
Power Supply: | 12 V DC ± 20%, PoE (802.3at, class 4) |
Power Consumption: | 12 VDC ± 20%: Max. 11.25 W/0.94 A PoE (802.3at): Max. 15 W/0.31 A |
Weather Proof: | IP67 |
IR Range: | Approx. 10 to 30 meters |
Dimensions: | 348.38 × 114.18 × 111.73 mm (13.72″ × 4.5″ × 4.4″) |
Weight: | Camera: 1900 g (4.19 lb.) With package: 2100 g (4.63 lb.) |
