Description

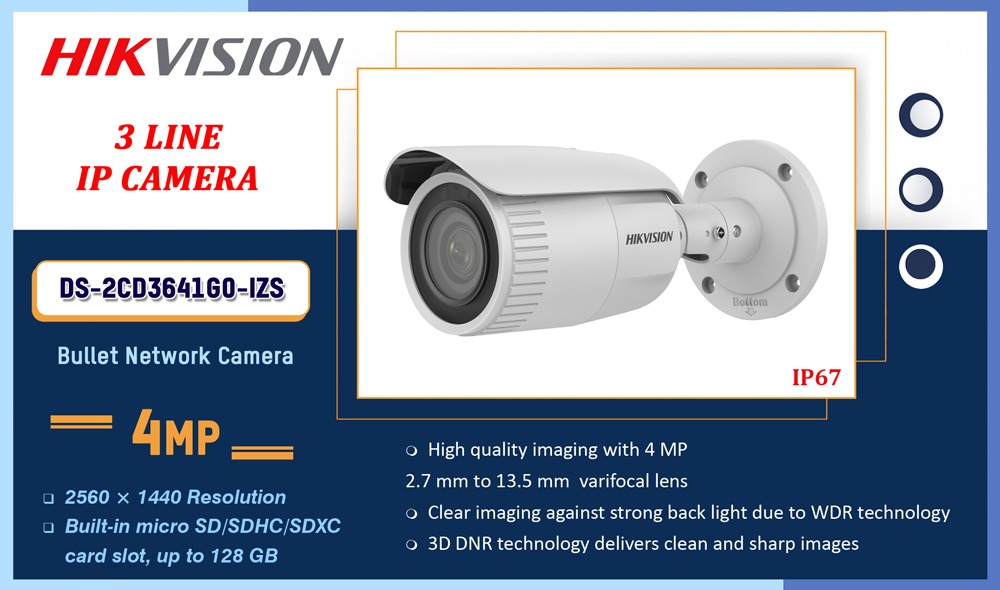

| Model | DS-2CD3641G0-IZS | |
|---|---|---|
Camera |
||
| Image Sensor | 1/3″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON) | |
| Shutter Speed | 1/3 s to 1/100, 000 s, support slow shutter | |
| Slow Shutter | Yes | |
| Auto-Iris | No | |
| Day & Night | IR cut filter | |
| Digital Noise Reduction | 3D DNR | |
| WDR | 120 dB | |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° | |
Lens |
||
| Focal Length | 2.7 to 13.5 mm | |
| Aperture | F1.6 | |
| Focus | Auto | |
| FOV | Horizontal field of view: 98° to 28° Vertical field of view: 51° to 16° Diagonal field of view: 115° to 32° | |
| Lens Mount | Φ14 | |
IR |
||
| IR Range | Up to 40 m | |
| Wavelength | 850 nm | |
Compression Standard |
||
| Video Compression | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 | |
| H.264 Type | Baseline Profile/Main Profile/High Profile | |
| H.264+ | Main stream supports | |
| H.265 Type | Main Profile | |
| H.265+ | Main stream supports | |
| Video Bit Rate | 32 Kbps to 8 Mbps | |
Smart Feature-set |
||
| Behavior Analysis | Line crossing detection, intrusion detection | |
| Region of Interest | 1 fixed region for main stream and sub-stream | |
Image |
||
| Max. Resolution | 2560 × 1440 | |
| Main Stream
Max. Frame Rate |
50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
|
| Sub-stream
Max. Frame Rate |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
|
| Third Stream
Max. Frame Rate |
50Hz: 1fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240, 320 x 240)
60Hz: 1fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240, 320 x 240) |
|
| Image Enhancement | BLC, 3D DNR, HLC | |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser | |
| Day/Night Switch | Auto, scheduled | |
Network |
||
| Network Storage | Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark | |
| Firmware Version | 5.5.3 | |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI | |
| Simultaneous Live View | Up to 6 channels | |
| User/Host | Up to 32 users
3 levels: Administrator, Operator and User |
|
| Client | iVMS-4200, iVMS-4500, iVMS-5200 | |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ | |
| Interface | ||
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Audio | 1 input, 1 output | |
| Alarm | 2 alarm input, 2 alarm output | |
| Reset Button | Yes | |
General |
||
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 20%, 5.5 mm coaxial power plug
PoE (802.3af, class 3) |
|
| Power Consumption and Current | 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W | |
| Protection Level | IP67
TVS 2000V lightning protection, surge protection and voltage transient protection |
|
| Material | Metal | |
| Dimensions | Φ 105 mm × 244.4 mm (Φ 4.1″ × 9.6″) | |
| Weight | Camera: approx. 1035 g (2.3 lb.)
With package: approx. 1550 g (3.4 lb.) |
|
