Description

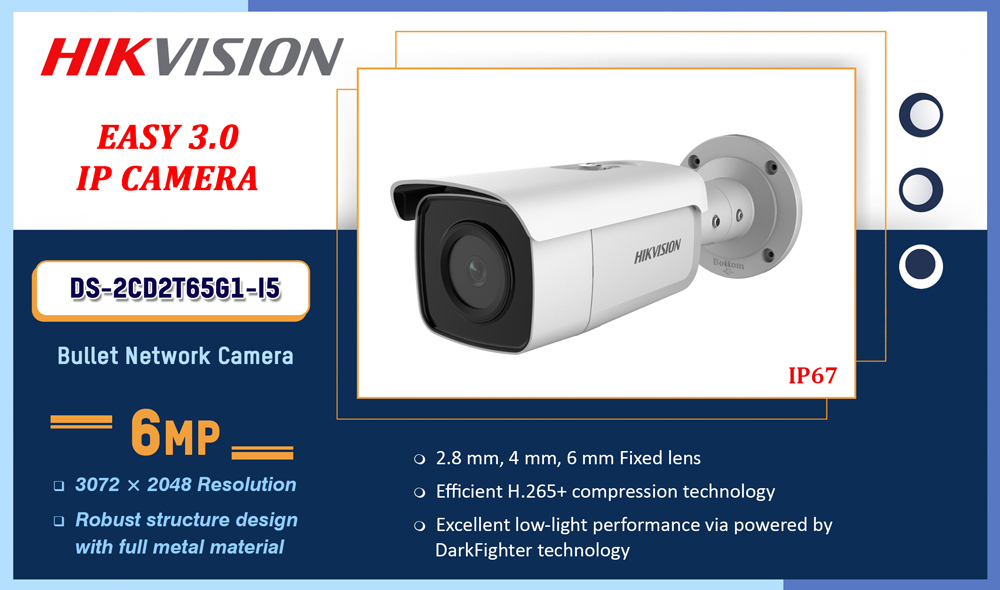

Datasheet: DS-2CD2T65G1-I5
User Manual: DS-2CD2T65G1-I5
Camera
- Image Sensor: 1/2.4″ Progressive Scan CMOS
- Min. Illumination: Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: 120dB
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
- Focus: Fixed
- Lens Type: 2.8/4/6 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°,4 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 101°,6 mm, horizontal FOV: 60°, vertical FOV: 38°
- Aperture: F1.6
- Lens Mount: M12
Illuminator
- IR Range: Up to 50 m
- Wavelength: 850 nm
Video
- Max. Resolution: 3072 × 2048
- Main Stream
- 50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream
- 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
- 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream
- 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
- 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
- Video Compression
- Main stream: H.265/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Main Profile/High Profile
- H.265 Type: Main Profile
- H.264+: Main stream supports
- H.265+: Main stream supports
- Region Of Interest (ROI): Support 1 fixed region for main stream and sub-stream separately
Network
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host: Up to 32 users,3 levels: Administrator, Operator and User
- Network Storage: Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger: Motion detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Day/Night Switch: Day/Night/Auto/Schedule
- DNR: 3D DNR
- Image Enhancement: BLC/3D DNR/HLC
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface
- On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset: Yes
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Event
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
- Face Detection: Yes
- Exception Detection: Scene change detection
General
- Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Firmware Version: V5.5.80
- Web Client Language: 32 languages
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- Power Consumption And Current: 12 VDC, 0.5 A, max: 8 W,PoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.1 A, max: 9.5 W
- Dimension
- Camera: Φ105 × 289.5 mm (4.1″ × 11.4″)
- Weight
- Camera: 1000 g (2.2 lb.)
- With package: 1500 g (3.3 lb.)
Approval
- Protection: IP67
