Description

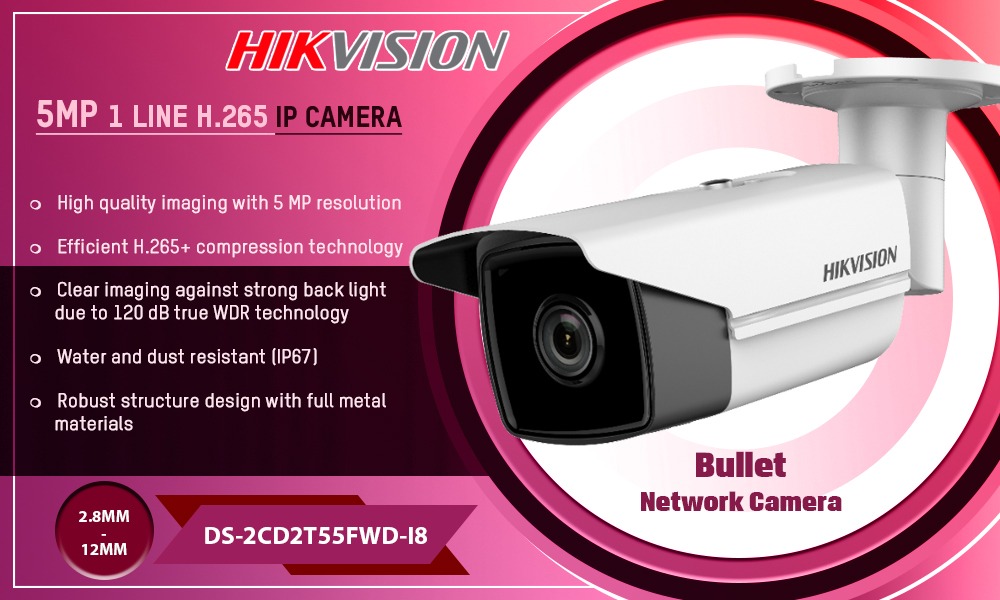

Datasheet: DS-2CD2T55FWD-I8
User Manual: DS-2CD2T55FWD-I8
Camera
- Image Sensor: 1/2.9″ Progressive Scan CMOS
- Min. Illumination: Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON), 0 lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: 120dB
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Lens
- Focus: Fixed
- Lens Type: 2.8/4/6/8/12 mm
- FOV: 2.8 mm, horizontal field of view: 97°,4 mm, horizontal field of view: 78°,6 mm, horizontal field of view: 60°,8 mm, horizontal field of view: 39.5°,12 mm, horizontal field of view: 19°
- Lens Mount: M12
- Aperture Type: Fixed
Illuminator
- IR Range: up to 80 m
Video
- Max. Resolution: 2944 × 1656
- Main Stream
- 50Hz: 20 fps (2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60Hz: 20 fps (2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream
- 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
- 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Third Stream
- 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)
- 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
- Video Compression
- Main stream: H.265/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Main Profile/High Profile
- H.265 Type: Main Profile
- H.264+: Main stream supports
- H.265+: Main stream supports
- Region Of Interest (ROI): Support 1 fixed region for main stream and sub stream separately
Network
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host: Up to 32 users,3 levels: Administrator, Operator and User
- Network Storage: Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
- Alarm Trigger: Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
- Day/Night Switch: Day/Night/Auto/Schedule
- DNR: 3D DNR
- Image Enhancement: BLC/3D DNR/HLC
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Interface
- On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset: Yes
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Event
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
- Face Detection: Yes
- Exception Detection: Scene change detection
General
- Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
- Firmware Version: V5.5.80
- Web Client Language: 32 languages
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
- Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, PoE(802.3af 36 to 57V, class 3)
- Power Consumption And Current: 12 VDC ± 25%, 10 W; PoE, 12.5 W
- Dimension
- Camera: Φ104.8 × 299.7 mm (Φ4.13″ × 11.8″)
- Package: 386 × 156 × 155 mm (15.2″ × 6.14″ × 6.1″)
- Camera Weight: 1200 g (2.65 lb.)
Approval
- Protection: IP67
