Description

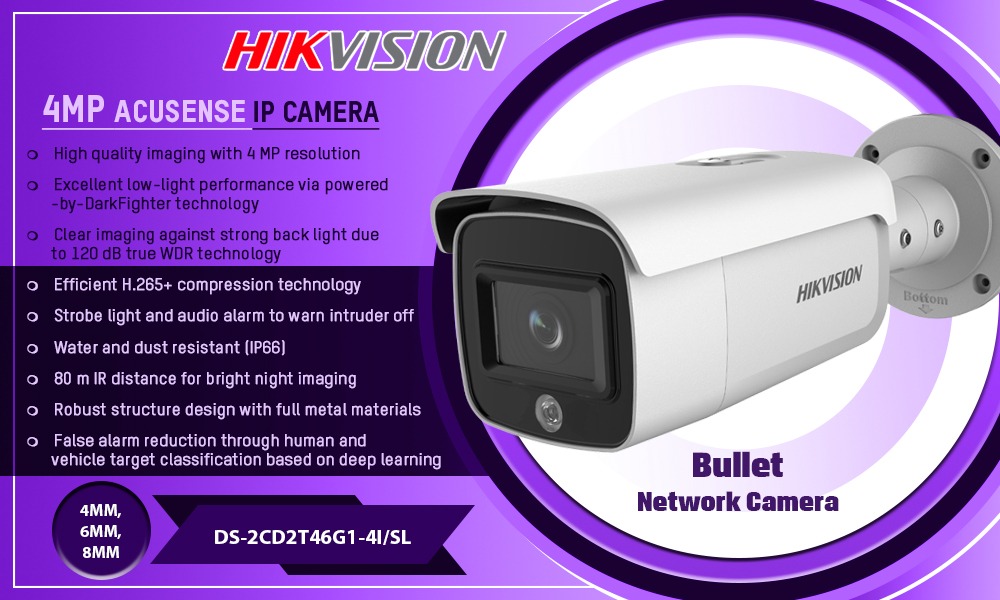

Datasheet: DS-2CD2T46G1-4I/SL
User Manual: DS-2CD2T46G1-4I/SL
Quick Start Guide: DS-2CD2T46G1-4I/SL
Camera
- Image Sensor: 1/2.7″ Progressive Scan CMOS
- Min. Illumination: 0.012 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Wide Dynamic Range: 120dB
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
- Focus: Fixed
- Lens Type: 2.8/4/6/8 mm
- FOV
- 2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°
- 4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
- 6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°
- 8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°
- Aperture: F1.6
- Lens Mount: M12
- Aperture Type: Fixed
Illuminator
- IR Range: Up to 80 m
- Wavelength: 850 nm
Video
- Max. Resolution: 2688 × 1520
- Main Stream
- 50Hz: 25fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- 60Hz: 30fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub Stream
- 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
- 60Hz: 30fps (704 × 576, 640 × 480, 352 × 288)
- Video Compression
- Main stream: H.265/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream:H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Main Profile/High Profile
- H.265 Type: Main Profile
- H.264+: Main stream supports
- H.265+: Main stream supports
- Scalable Video Coding (SVC): H.265 encoding and H.264 encoding support
- Region Of Interest (ROI): Support 4 fixed region for main stream and sub-stream separately
Network
- Simultaneous Live View: Up to 6 channels
- API: ONVIF (PROFILE S, PROFILE G), ISAPI
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- User/Host: Up to 32 users,3 levels: Administrator, Operator and User
- Network Storage: Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
- Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web Browser: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
- Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Day/Night Switch: Day/Night/Auto/Schedule
- DNR: 3D DNR
- Image Enhancement: BLC/3D DNR/HLC
- Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Interface
- On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 128 GB
- Hardware Reset: Yes
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Event
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification
General
- Firmware Version: V5.5.72
- General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3at, class 4)
- Power Consumption And Current: 12 VDC, 1.25 A, max. 15 W,PoE: (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, max. 18 W
- Dimension
- Camera: Φ 105 × 292.2 mm (Φ 4.1″ × 11.5″)
- With package: 385 × 190 × 180 mm (15.2″ × 7.5″ × 7.1″)
- Weight
- Camera: 1320 g (2.9 lb.)
- With package: 1924 g (4.2 lb.)
Approval
- Protection: IP66
