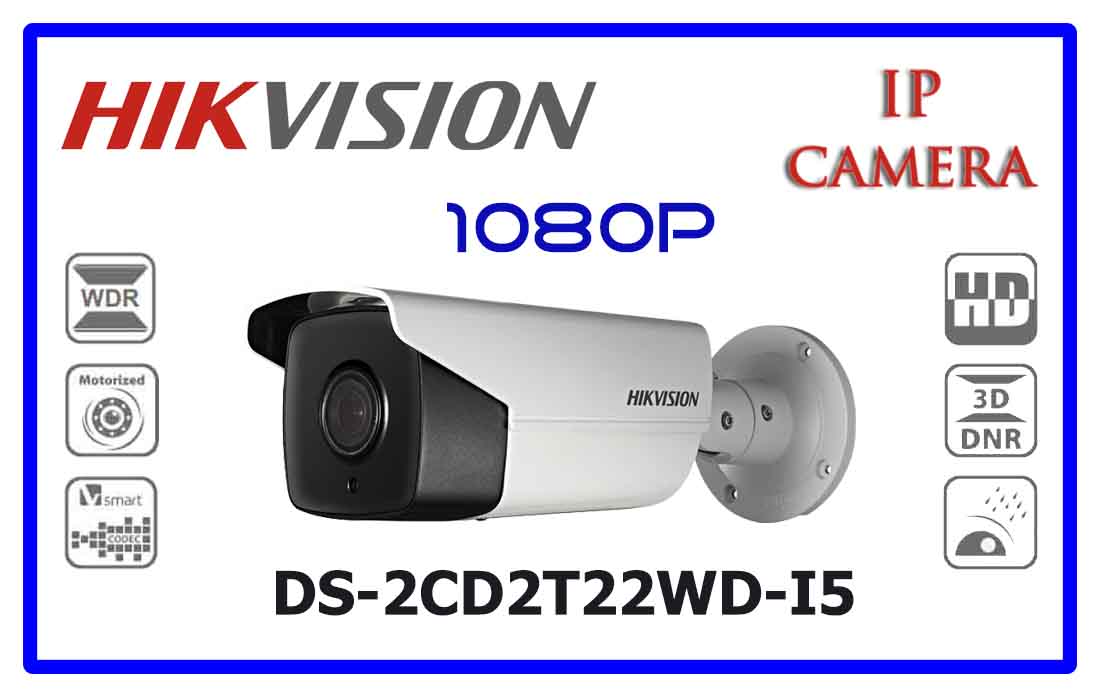

DS-2CD2T22WD-I5
You are here: Home \ Products \ DS-2CD2T22WD-I5

DS-2CD2T22WD-I5

logo-2

  • 1/2.8” Progressive Scan CMOS
  • Up to 2 megapixel resolution
  • Full HD 1080p real-time video
  • 120dB Wide Dynamic Range
  • 3D DNR
  • EXIR high performance LEDs
  • Up to 30/50/80 meters IR range
  • 12V DC±25% & PoE(802.3af Class3)
  • Support H.264+
  • IP67
Categories: , , ,

Description

DS-2CD2T22WD-I5 – Product Description

Model DS-2CD2T22WD-I5
Image Sensor: 1/2.8″ Progressive Scan CMOS
Min. Illumination: Color: 0.028 @ (ƒ/2.0, AGC on), 0 lux with IR
Shutter time: 1/3 s to 1/10,000 s
Slow shutter: Supported
Lens: 4 mm, 6 mm options; angle of view: 90° (4 mm), 54° (6 mm)
Lens Mount: M12
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Video Compression: H.264/MJPEG/H.264+
H.264 Type: Main Profile
Video bit rate: 256 Kbps – 16 Mbps
Dual Stream: Yes
Max. Image Resolution: 1920 x 1080
Frame Rate: 30 @ 1920×1080, 1280×960, 1280×720
Image Settings: Rotate mode, Saturation, Brightness,
Contrast adjustable by client software or web browser
BLC: Yes, zone configurable
ROI: Yes, 4 regions
3D DNR: Supported
Day/Night Switch: Auto/schedule/triggered by alarm in
Network Storage: NAS (Support NFS,SMB/CIFS)
Alarm Trigger: Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis,
Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP,S MTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
Security: Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filtering, Anonymous access
System Compatibility: ONVIF, PSIA, CGI, ISAPI
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Line Crossing Detection: Cross a pre-defined virtual line
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Maximum 7.5 W
Weather Proof: IP67
IR Range: 50 meters
Dimensions: 299.71 mm × 86.48 mm × 85.11 mm (11.8″ × 3.4″ × 3.35″)
Weight: 1200 g (2.65 lbs)
