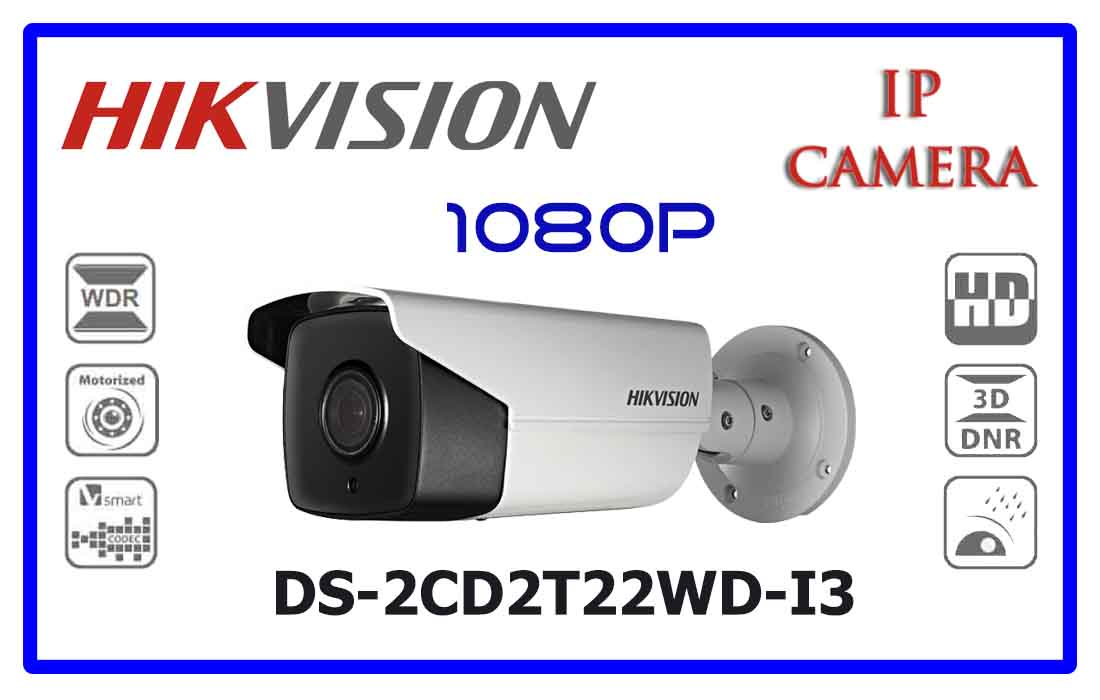

DS-2CD2T22WD-I3

1/2.8” Progressive Scan CMOS
logo-2
Up to 2 megapixel resolution
Full HD1080p real-time video
120dB Wide Dynamic Range
3D DNR
EXIR high performance LEDs
Up to 30/50/80 meters IR range
12V DC±25% & PoE(802.3af Class3)
Support H.264+
IP67

Categories: , , ,

Description

DS-2CD2T22WD-I3 – Product Description

Model DS-2CD2T22WD-I3
Image Sensor: 1/2.8″ Progressive Scan CMOS
Min. Illumination: 0.01Lux @(F1.2,AGC ON), 0.028 Lux @(F2.0,AGC ON), 0 Lux with IR
Shutter time: 1/3 s ~ 1/10,000 s
Slow shutter: Support
Lens: (-I3: 4,6mm; -I5: 4,6,12mm; -I8: 6,12,16mm)
@F2.0 angle of view: 90°(4mm), 53.9°(6mm), 24.3°(12mm), 18.9°(16mm)
Lens Mount: M12
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Video Compression: H.264/MJPEG/H.264+
H.264 code profile: Main Profile
Video bit rate: 32Kbps~16Mbps
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz:Main stream:25fps(1920×1080),25fps(1280×960),
25fps(1280×720)Sub stream:25fps(352×288),25fps(640×360)
60Hz: Main stream:30fps (1920×1080), 30fps(1280×960), 30fps(1280×720)
Sub stream: 30fps(352×240),30fps(640×360)
Image Enhancement: BLC/3D DNR/ROI
Image Settings: Rotate Mode, Saturation, Brightness, Contrast,
Sharpness adjustable by client software or web browser
BLC: Support
ROI: Support
Day/Night Switch: Auto/Schedule/Triggered by Alarm In
Network Storage: NAS (Support NFS,SMB/CIFS)
Alarm Trigger: Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,
NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security: Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filtering, Anonymous access
System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Consumption: -I3: Max. 6W; -I5: Max. 7.5W; -I8: Max. 10.5W
Weather Proof: IP67
Dimensions: 299.71 × 86.48 × 85.11(11.8’’ × 3.4’’ × 3.35’’)
Weight: 1200g (2.65 lbs)
