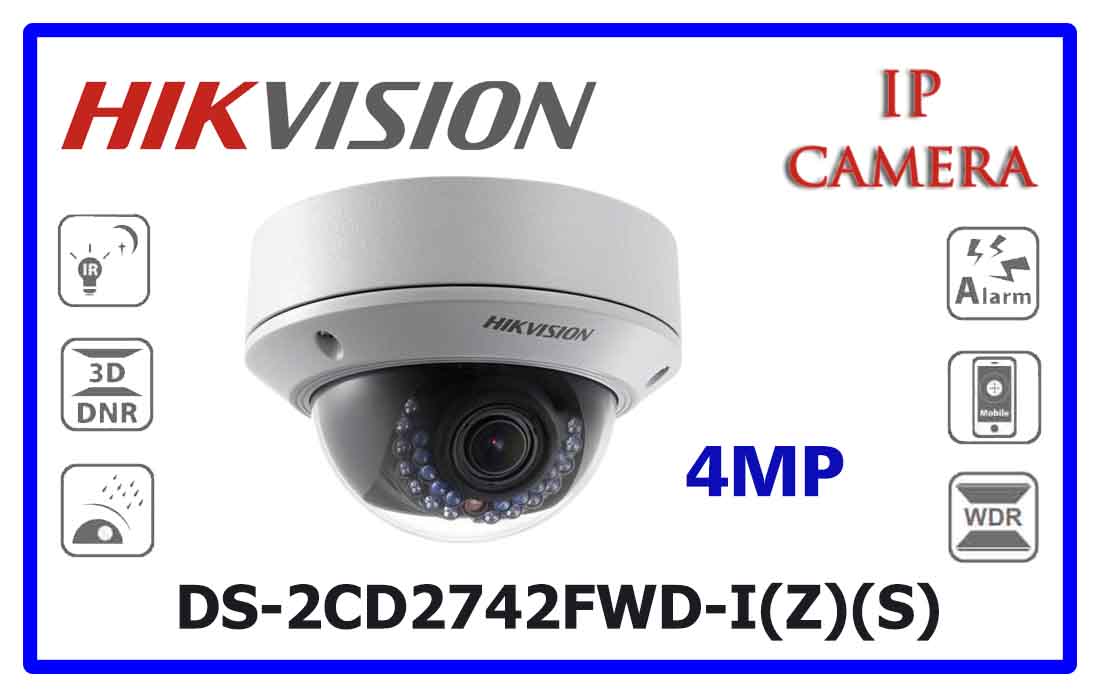

DS-2CD2742FWD-I(Z)(S)

logo-2
1/3” Progressive Scan CMOS
Up to 4 megapixel resolution
120dB WDR
3D DNR
Up to 30 meters IR range
Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Audio/alarm I/O (-S)
Mobile Monitoring via cloud P2P or iVMS-4500
12V DC±25% & PoE(802.3af Class3)
Support H.264+
IP67
IK10

Categories: , , ,

Description

DS-2CD2742FWD-I(Z)(S) – Product Description

DS-2CD2742FWD-I(Z)(S) – User Manual

Model DS-2CD2742FWD-I(Z)(S)
Image Sensor: 1/3″ Progressive Scan CMOS
Min. Illumination: 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter time: 1/3 s ~ 1/100,000 s
Slow shutter: Support
Lens: 2.8 – 12 mm @ F1.4, motorized lens (-Z), angle of view: 112°~33.8°
Lens Mount: φ14
Adjustment Range: Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0° – 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Video Compression: H.264/MJPEG/H.264+
H.264 code profile: Main Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: -S: G.711/G.722.1/G.726/MP2L2
Max. Image Resolution: 2688 × 1520
Frame Rate: 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Image Enhancement: BLC/3D DNR/ROI
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness
adjustable by client software or web browser
Day/Night Switch: Auto/Schedule/Triggered by Alarm In
Network Storage: Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS)
Alarm Trigger: Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm,
Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,
RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: Max. 5.5 W
Impact Protection: IEC60068-2-75Eh, 50J; EN50102, IK10
Weather Proof: IP67
IR Range: Up to 30m
Dimensions: Φ 140 × 99.9 mm (Φ 5.51” × 3.94”)
Weight: 1000g (2.20lbs)
NOTE:: * “-S” series support 1-ch audio I/O and 1-ch alarm I/O
