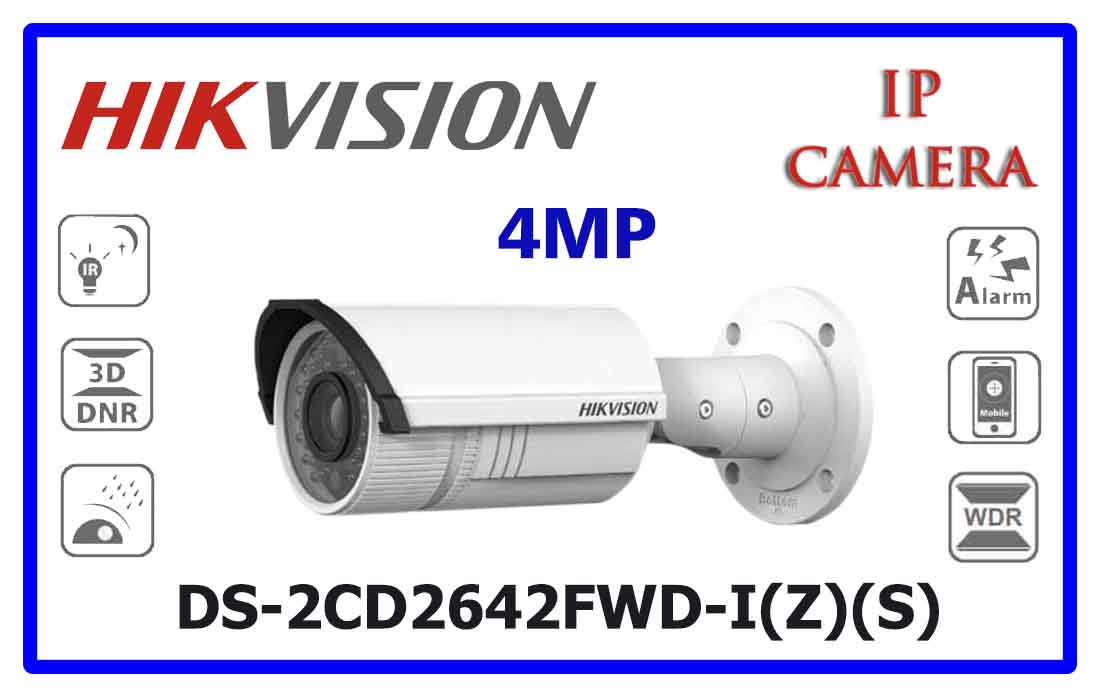

DS-2CD2642FWD-I(Z)(S) – Product Description
| Model | DS-2CD2642FWD-I(Z)(S) |
|---|---|
| Image Sensor: | 1/3″ Progressive Scan CMOS |
| Min. Illumination: | 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR |
| Shutter time: | 1/3 s ~ 1/100,000 s |
| Slow shutter: | Support |
| Lens: | 2.8 – 12 mm @ F1.4, motorized lens (-Z), angle of view: 112°~33.8° |
| Lens Mount: | φ14 |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Video Compression: | H.264/MJPEG/H.264+ |
| H.264 code profile: | Main Profile |
| Video bit rate: | 32Kbps~16Mbps |
| Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2 |
| Max. Image Resolution: | 2688 × 1520 |
| Frame Rate: | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
| Image Enhancement: | BLC/3D DNR/ROI |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In |
| Network Storage: | Micro SD/SDHC/SDXC card with ANR (up to 128G), NAS (Support NFS, SMB/CIFS) |
| Alarm Trigger: | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | Max. 5.5 W (Max. 7.5 W with IR cut filter on) |
| Weather Proof: | IP67 |
| IR Range: | Approx 20 to 30 meters(65.6-98.4ft) |
| Dimensions: | 95×105×258.6 mm (3.74” × 4.13” × 10.18”) |
| Weight: | 1200g (2.65 lbs) |
| NOTE：: | * “-S” series support 1-ch audio I/O and 1-ch alarm I/O |
