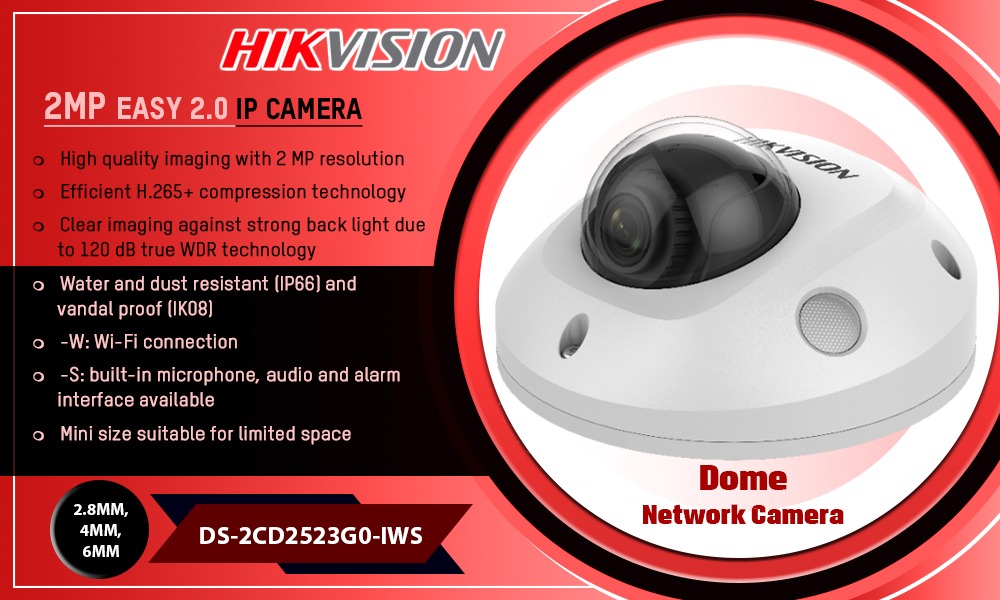

DS-2CD2523G0-IWS

Description

Datasheet: DS-2CD2523G0-IWS

User Manual: DS-2CD2523G0-IWS

Camera

• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Min. Illumination: Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120 dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: 2.8, 4, 6 mm
• FOV
  • 2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
  • 4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
  • 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
• Aperture: F2.0
• Lens Mount: M12

Illuminator

• IR Range: Up to 10 m
• Wavelength: 850 nm

Video

• Max. Resolution: 1920 × 1080
• Main Stream
  • 50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream
  • 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream
  • 50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
  • 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
• Video Compression
  • Main stream: H.265/H.264
  • Sub-stream: H.265/H.264 /MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Scalable Video Coding (SVC): Support H.264 and H.265 encoding

Audio

• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Compression: G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
• Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host: Up to 32 users. 3 levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storage: Support Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
• Client
  • Wired network: Hik-Connect, iVMS-4200, Hik-Central
  • Wi-Fi: iVMS-4200, Hik-Central
    *Wi-Fi connection with Hik-Connect directly is not possible.
• Web Browser
  • Plug-in required live view: IE 8+
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
  • Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login

Wi-Fi

• Encryption Mode: WPA, WPA2
• Wi-Fi Protocol: IEEE 802.11b/g/n
• Frequency Range: 2.412 GHz to 2.4835 GHz
• Channel Bandwidth: 20 M/40 M
• Wireless Range: Up to 50 m (The performance varies based on actual environment)
• Transfer Rate
  • 11b: 11 Mbps
  • 11g: 54 Mbps
  • 11n: up to 150 Mbps


• Day/Night Switch: Auto/Schedule/Day/Night/Triggered by Alarm In
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface

• Audio
  • 2 inputs: line in, or mic in (built-in microphone)
  • 1 output: line out, mono sound, terminal block
• Alarm
  • 1 input: alarm in;
  • 1 output: alarm out (max. 12 VDC, 30 mA), terminal block
• On-Board Storage: Built-in MicroSD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, face detection
• Face Detection: Yes

General

• Linkage Method
  • recording: memory card, network storage, pre-record and post-record
  • Trigger captured pictures uploading: FTP, HTTP, NAS, Email
  • Trigger notification: HTTP, ISAPI, alarm output , Email
• Firmware Version: V5.6.5
• Web Client Language: 32 languages
  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%
  PoE (802.3af, class 3)
• Power Consumption And Current: 12 VDC, 0.7 A, max. 8.5 W, Ø5.5mm coaxial plug power
  PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W
• Camera Dimension: Ø120 mm × 67.4 mm (Ø4.7″ × 2.7″)
• Camera Weight: approx. 400 g (0.9 lb.)

Approval

• Protection: Ingress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
