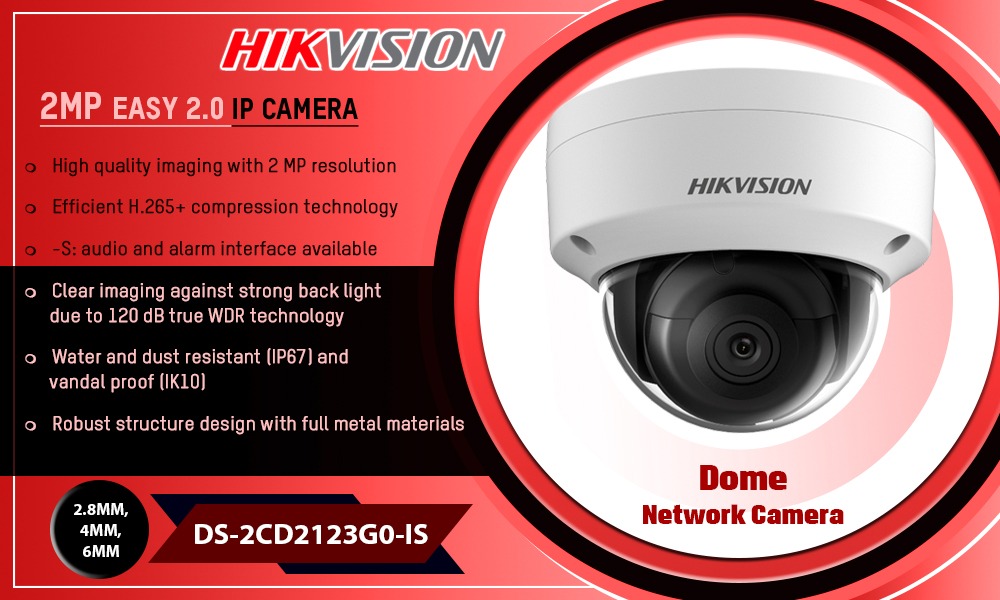

DS-2CD2123G0-IS

Description

Datasheet: DS-2CD2123G0-IS

User Manual: DS-2CD2123G0-IS

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Wide Dynamic Range: 120dB
• Day & Night: IR Cut Filter
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Focus: Fixed
• Lens Type: 2.8/4/6 mm
• FOV
  • 2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
  • 4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
  • 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
• Aperture: F2.0
• Lens Mount: M12
• Aperture Type: Fixed

Illuminator

• IR Range: Up to 30 m
• Wavelength: 850nm

Video

• Max. Resolution: 1920 × 1080
• Main Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream
  • 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
  • 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream
  • 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
  • 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
• Video Compression
  • Main stream: H.265/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.264+: Main stream supports
• H.265+: Main stream supports
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio

• Environment Noise Filtering: Yes
• Sampling Rate: 8kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Audio Compression: G722.1/G.711/G726/MP2L2/PCM/MP3
• Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

Network

• Simultaneous Live View: Up to 6 channels
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Network Storage: Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in (-S)
• Target Cropping: No
• DNR: 3D DNR
• Image Enhancement: BLC/3D DNR/HLC
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface

• Audio: 1 input (line in/mic in), 1 output (line out), terminal block, mono sound
• Alarm: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
• Video Output: No
• On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset: Yes
• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event: Line crossing detection, intrusion detection, face detection
• Face Detection: Yes

General

• Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Firmware Version: 5.6.3
• Web Client Language: 32 languages
  • English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function: Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug, PoE (802.3af, class 3)
• Power Consumption And Current: 12 VDC, 0.5 A, max. 6 W, PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
• Dimension
  • Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)
  • Package: 134 × 134 × 108 mm (5.3″ × 5.3″ × 4.3″)
• Weight
  • Camera: Approx. 610 g (1.3 lb.)
  • With Package: Approx. 820 g (1.8 lb.)

Approval

• Protection: IK10, IP67
