DS-2CD2042WD-I

logo-2
Up to 4 megapixel high resolution
Dual stream
4mm/6mm fixed lens
120dB Wide Dynamic Range
3D Digital Noise Reduction
Backlight Compensation
Support on-board storage, up to 128GB
DC12V & PoE
Support H.264+
Up to 30m IR range
3-axis adjustment
IP67 weather-proof protection
Metallic housing & bracket

Categories: , , ,

Description

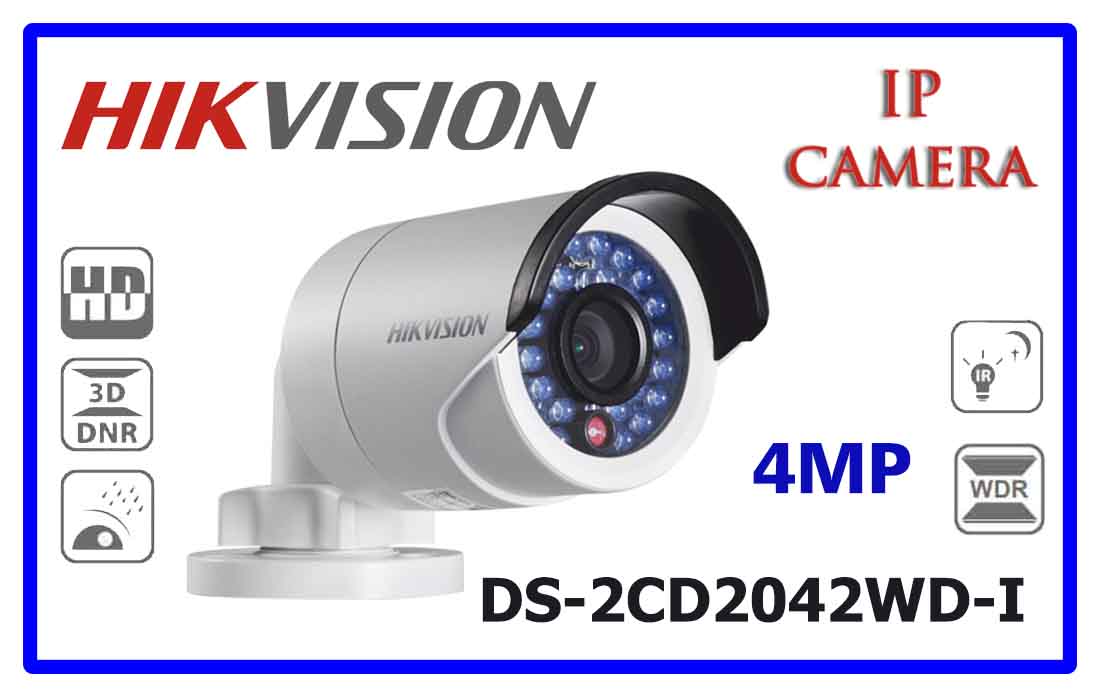

DS-2CD2042WD-I – Product Description

DS-2CD2042WD-I – User Manual

Model DS-2CD2042WD-I
Image Sensor: 1/3″ Progressive Scan CMOS
Min. Illumination: Color: 0.028 @ ƒ/2.0, B/W: 0 with IR
Shutter time: 1/3 s to 1/10,000 s
Lens: Fixed, 4 mm @ ƒ/2.0 (6 mm option)
Angle of view: 82° (4 mm), 55° (6 mm)
Lens Mount: M12
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Video Compression: H.264/MJPEG/H.264+
H.264 code profile: Main profile
Video bit rate: 32Kbps~16Mbps
Dual Stream: Yes
Max. Image Resolution: 2688×1520
Frame Rate: 20 @ 2688×1520
30 @ 1920×1080, 1280×720
Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
ROI: Yes
3D DNR: Supported
Network Storage: NAS (Support NFS,SMB/CIFS)
Alarm Trigger: Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm,
Network disconnect , IP address conflict, Storage exception
Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
System Compatibility: ONVIF, PSIA, CGI, ISAPI
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 5 W
Weather Proof: IP67
IR Range: 30 meters
Dimensions: 60.4 mm × 76.9 mm × 139.2 mm (2.4” × 3.0” × 5.5”)
Weight: 500g (1.1 lbs)
