Description

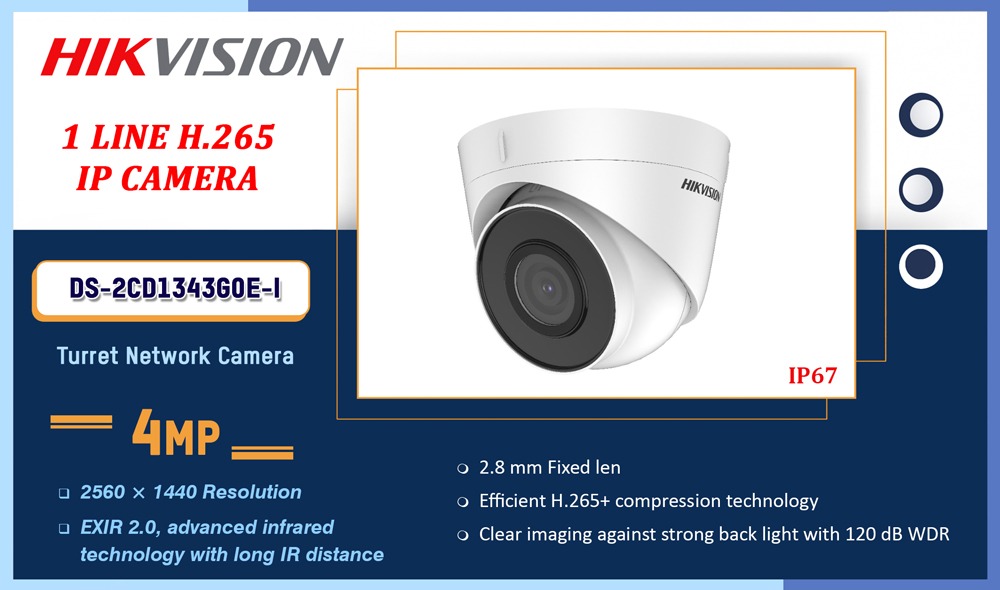

Datasheet: DS-2CD1343G0E-I
User Manual: DS-2CD1343G0E-I
Quick Start Guide: DS-2CD1343G0E-I
Camera
- Image Sensor: 1/3″ Progressive Scan CMOS
- Min. Illumination: Color: 0.028 Lux @ (F2.0, AGC ON)
- Shutter Speed: 1/3 s to 1/100,000 s
- Slow Shutter: Yes
- Day &Night: IR Cut Filter
- Wide Dynamic Range: Digital WDR
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
- Lens: Fixed lens, 2.8/4 mm
- Aperture: F2.0
- FOV
- 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
- 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
- Lens Mount: M12
Illuminator
- IR Range: Up to 30 m
- Wavelength: 850nm
Video
- Max. Resolution: 2560 × 1440
- Main Stream
- 50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
- 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub Stream
- 50Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
- 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
- Video Compression
- Main stream: H.265+/H.264+/H.265/H.264
- Sub-stream: H.265/H.264/MJPEG
- H.264 Type: Baseline Profile/Main Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 8 Mbps
Smart Feature-Set
- Basic Event: Motion detection, video tampering alarm, exception (illegal login)
- Region Of Interest: 1 fixed region for main stream
- Linkage Method: Upload to FTP, notify surveillance center, send email
- Image Enhancement: BLC, HLC, 3D DNR
- Setting: Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
- Day/Night Switch: Day/Night/Auto/Schedule
- SNR: > 50dB
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- API: ONVIF (PROFILE S), ISAPI, SDK
- Security: Password protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users,3 levels: Administrator, Operator and User
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
Interface
- Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Approval
- EMC: 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
- Safety: UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
- Chemistry: 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
- Protection: Ingress protection: IP67 (IEC 60529-2013)
General
- General Function: Anti-flicker, heartbeat, mirror, privacy mask
- Reset: Reset via web browser and client software
- Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
- Power Consumption And Current: 12 VDC, 0.34 A, max. 4 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 5 W
- Material: Camera body: metal, bottom base: plastic
- Dimensions
- Camera: Φ110 mm × 94.4 mm (Φ4.3″ × 3.7\”)
- With package: 150 × 150 × 141 mm (5.9 × 5.9\” × 5.6\”)”
- Weight
- Camera: approx. 360 g (0.8 lb.)
- With package: approx. 580 g (1.3 lb.)
