Description

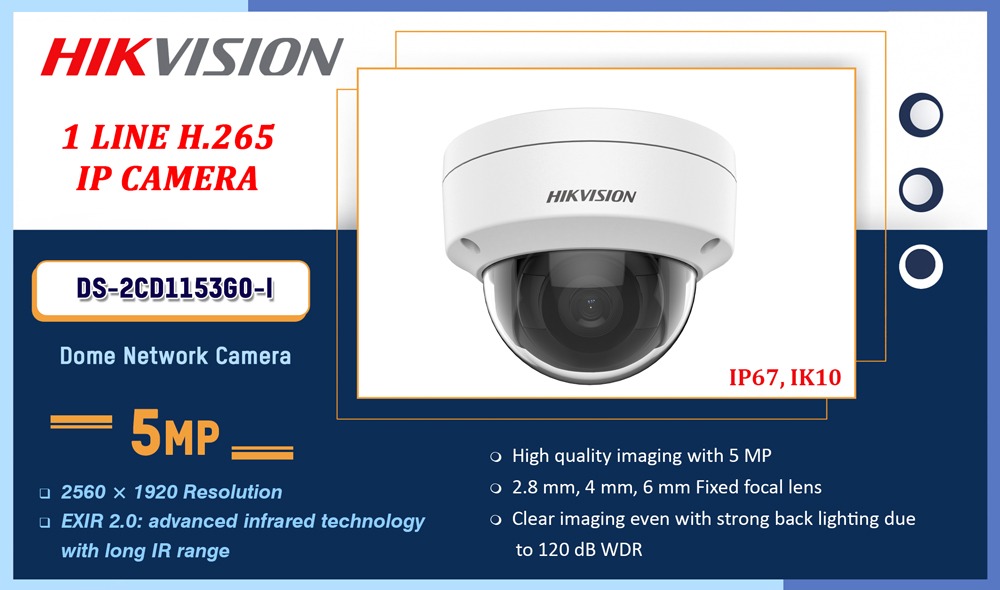

Datasheet: DS-2CD1153G0-I
User Manual: DS-2CD1153G0-I
Camera
- Image Sensor: 1/2.7″ Progressive Scan CMOS
- Max. Resolution: 2560 × 1920
- Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Speed: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°
Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
- 2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°
- 4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F2.0
Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 30 m
- IR Wavelength: 850 nm
Video
- Main Stream
- 50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main profile
- Region Of Interest (ROI): 1 fixed region for main stream
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface, ISAPI
- User/Host
- Up to 32 users. 3 levels: administrator, operator and user
- 3 user levels: administrator, operator, and user
- Client: iVMS-4200, Hik-Connect
- Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch: Auto, Schedule, Day, Night
- Wide Dynamic Range (WDR): 120 dB
- Image Enhancement: BLC, 3D DNR
Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
- Basic Event: Motion detection, video tampering, exception
- Linkage: Upload to FTP, notify surveillance center, send email
General
- Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Dimension: Ø110.8 mm × 84.7 mm (4.4″ × 3.3″)
- Package Dimension: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)
- Weight: Approx. 520 g (1.1 lb.)
- With Package Weight: Approx. 720 g (1.6 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Approval
- EMC
- FCC SDoC: 47 CFR Part 15, Subpart B;
- CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;
- RCM: AS/NZS CISPR 32: 2015;
- IC VoC: ICES-003: Issue 7;
- KC: KN 32: 2015, KN 35: 2015
- Safety
- UL: UL 62368-1;
- CB: IEC 62368-1:2014+A11;
- CE-LVD: EN 62368-1:2014/A11:2017;
- BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
- Environment
- CE-RoHS: 2011/65/EU;
- WEEE: 2012/19/EU;
- Reach: Regulation (EC) No 1907/2006
- Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002
