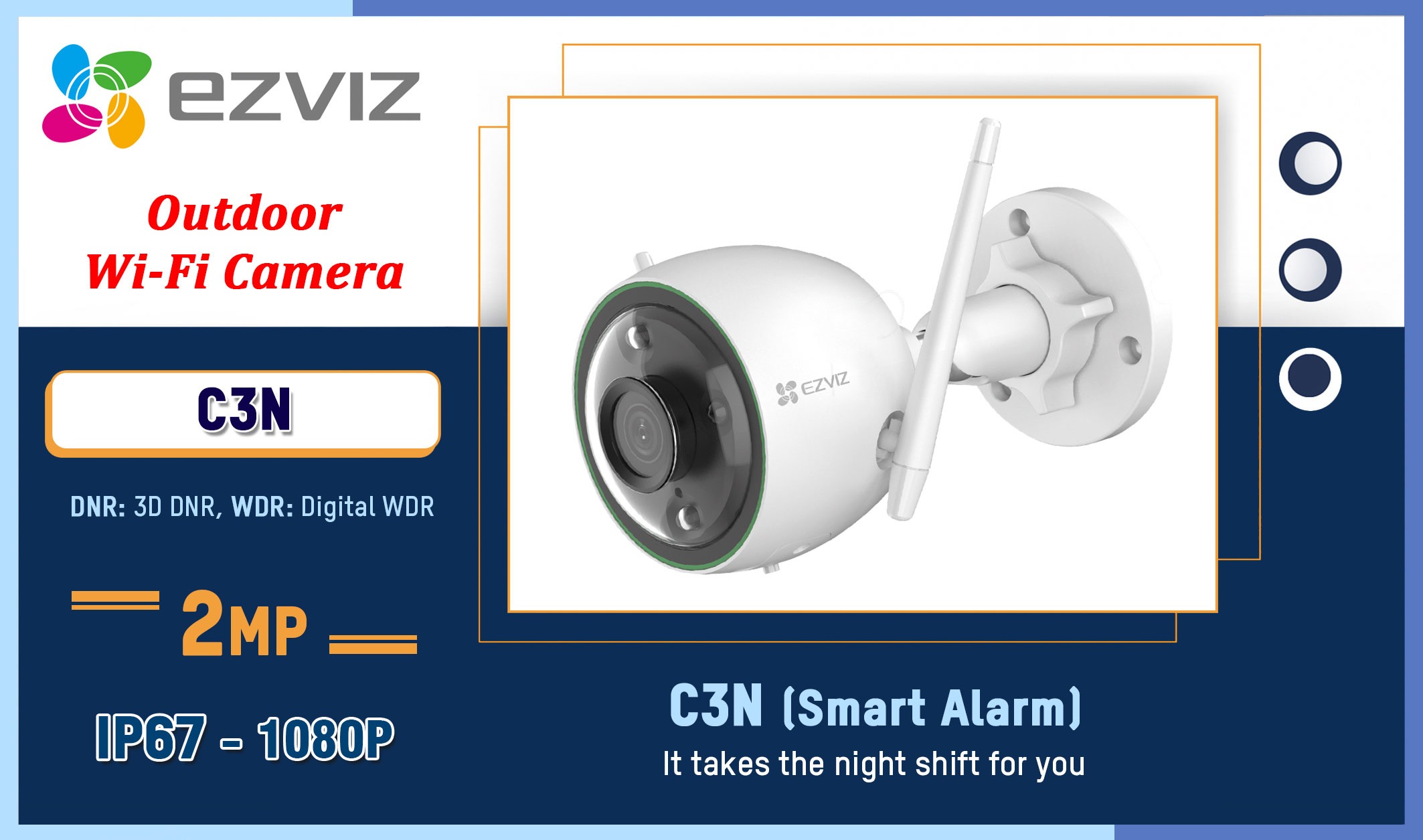

C3N

EZVIZ-Logo COLOMBO CCTV

Key Features

  • Color Night Vision
  • H.265 Video Compression
  • AI-Powered Person Detection
  • IP67 Dust and Water Protection
  • Wi-Fi 2.4 GHz with Dual External Antennas

Description


Datasheet: C3N


User Manual: C3N

Model C3N
Camera
Image Sensor 1/2.7” Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 2.8 mm @ F2.0, view angle: 104° (Horizontal), 125° (Diagonal) 4 mm @ F2.0, view angle: 86° (Horizontal), 102° (Diagonal)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.264 / H.265
Video Bit Rate Ultra-HD; HD; Standard. Adaptive bit rate.
Max. Resolution 1920 × 1080
Frame Rate Max: 30 fps; Self-adaptive during network transmission
BLC Supports
Interface
Storage Micro SD card slot (max. 256 GB)
Wired Network RJ45 × 1 (10 M/100 M Self-adaptive Ethernet port)
Network
Smart Alarm AI-powered person detection
Wi-Fi Pairing AP pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Max. Bitrate 2 Mbps
Wi-Fi
Standard IEEE802.11 b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps
General
Operating Conditions Temperature: -30°C to 60°C (-22°F to 140°F), humidity: 95% or less (non-condensing)
Power Supply DC 12V / 1A
Power Consumption Max. 7W
IP Grade IP67
Night Vision Distance (Black/White Night Vision Mode) Max. 30 meters (98.43 ft.)
Audio Reception Max. 5 meters (16.4 ft.)
Dimensions 75.5 × 75.5 × 155 mm (2.97 × 2.97 × 6.10 inch)
Packaging Dimensions 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Weight 422 g (0.93 lbs)
Certifications
Certifications CE / WEEE / REACH / ROSH / FCC / UL
