Description
Datasheet: C2C (H.265)
User Manual: C2C (H.265)

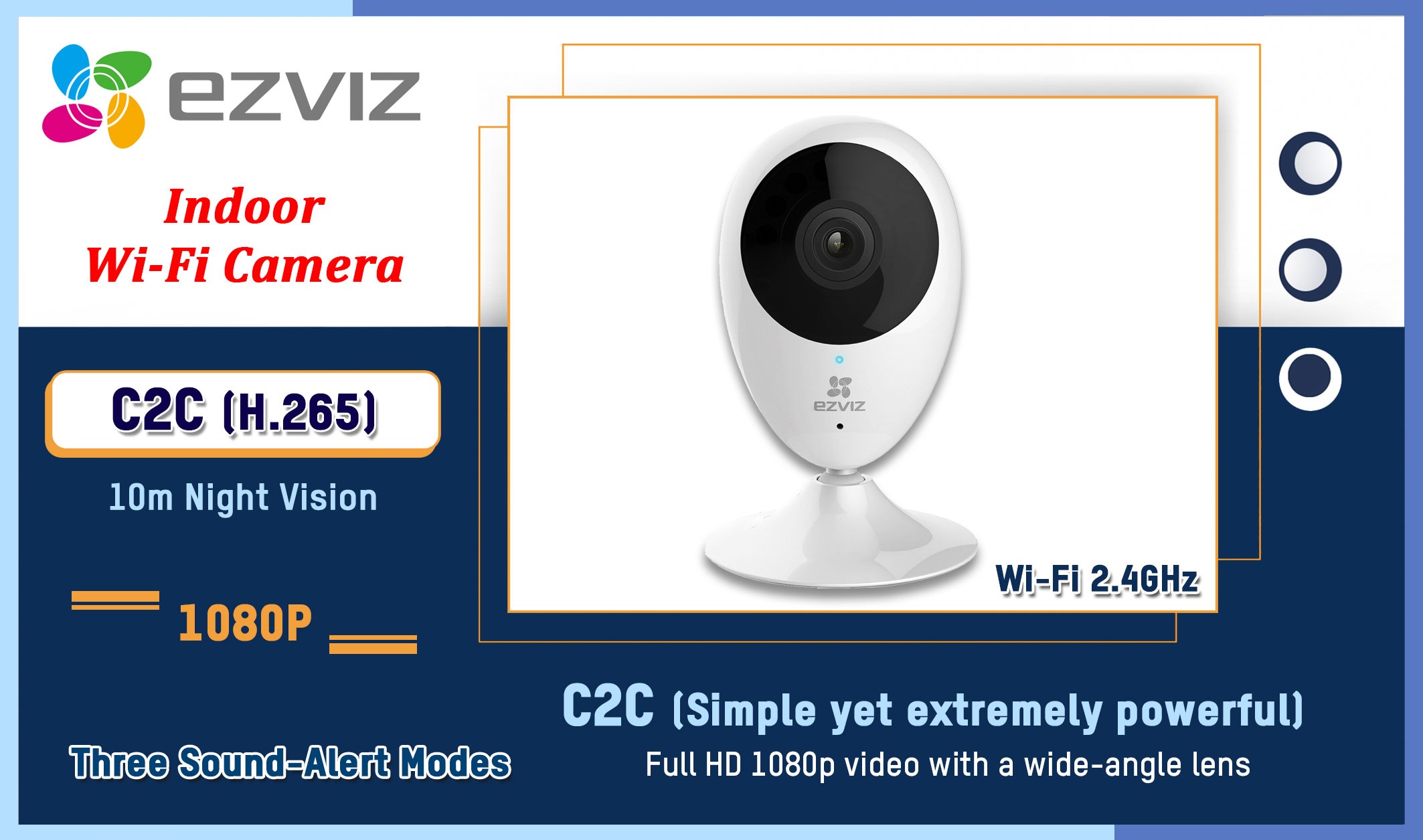

| Model | C2C (H.265) |
|---|---|
| Camera | |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4 mm, view angle: 108° (Diagonal), 91° (Horizontal), 50° (Vertical) |
| Minimum Illumination | 0.5 Lux @(F2.2, AGC ON), 0 Lux with IR |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| Night Vision | 10 m |
| Video & Audio | |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | Max:25 fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | HD; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-adaptive |
| Max. Bitrate | 1 Mbps |
| Function | |
| Smart Alarm | Motion detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Network | |
| Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Storage | |
| Local Storage | MicroSD card (max. 256 GB) |
| Cloud Storage | EZVIZ Cloud Storage |
| General | |
| Operating Conditions | -10 ºC ~ 45 ºC (14 °F ~ 113 °F ), Humidity 95% or less ( non-condensing) |
| Power Supply | DC 5V / 1A |
| Power Consumption | Max. 4.0 W |
| Product Dimensions | 110 × 58 × 38 mm (4.33 x 2.28 x 1.50 inch) |
| Packaging Dimensions | 149 × 91.5 × 87.5 mm (5.87 x 3.60 x 3.44 inch) |
| Net Weight | 100 g (3.53 oz) |
| Weight (With Package) | 292 g (10.30 oz) |
| In the box: | |
| In the box: | – C2C Camera – USB Cable – 3-Meter Power Adapter – Foam Sticker – Metal Plate – Base – Drill Template – Screw Kit – Regulatory Information – Quick Start Guide |
| Certifications: | |
| Certifications: | FCC/UL/CE/RoHS/WEEE/REACH |
